Description

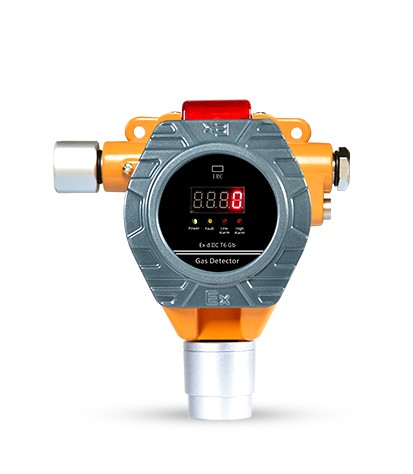

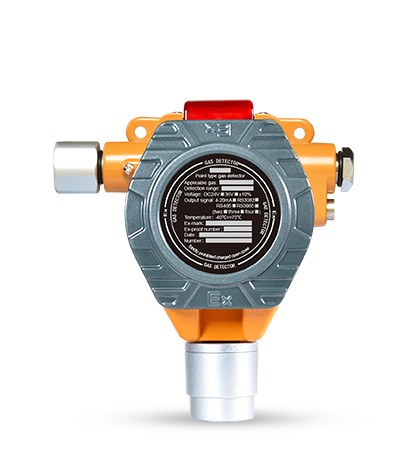

Zhongan GTYQ-S105 gas detector adopts the mixed technology of two-wire signal and power supply, wiring only needs 2 wires, no positive and negative wiring is convenient, the detector integrates sound and light display in one, wireless remote control debugging parameters, and real-time display monitoring On-site gas concentration, safe and simple without opening the cover.

Zhongan GTYQ-S105 point-type gas detector can convert the signal of gas concentration in the air into electric signal for remote transmission. The instrument has the advantages of long transmission distance, anti-interference, high sensitivity and fast response time.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Detection gas	Combustible/toxic and harmful gas (see attached table)
Detection method	Natural diffusion
Detection principle	Catalysis; electrochemistry; semiconductor; infrared
Detection range	(3~100%) LEL; 0-****PPM
Resolution	1% LEL; 1PPM/0.1PPM

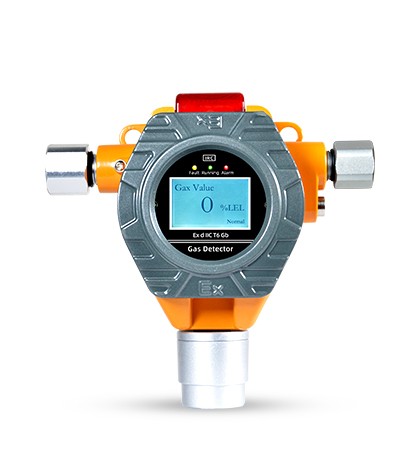

Display	LCD display, LED display
Battery	DC24V
Response time	flammable: <15s; toxicity: <60s
Working environment	－40℃～70℃（combustible gas）；－20℃～50℃（toxic gas）
Relative humidity	≤93%RH
Alarm mode	sound and light alarm
Debugging method	manipulator
Output signal	two-wire system
Power consumption	≤3W
Explosion-proof certificate number	CLEx24.1033X
Explosion-proof grade	Ex ia IIC T6 Ga
Protection level	IP65
size	(182×175×73)mm
Instrument weight	1500g

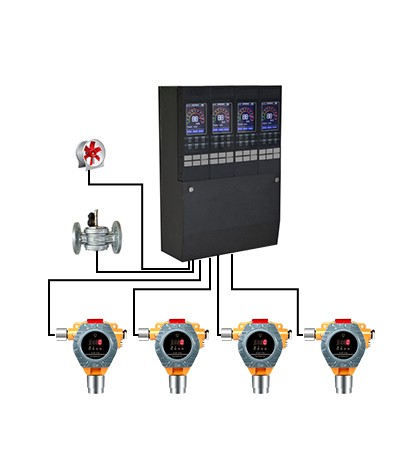

Maximum distance between detector and host	≤1000m

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL（Infrared or catalytic ）	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL(Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!
