Readings | Large screen display of gas composition / concentration |
Display | LCD digital display of gas type /gas concentration/ status |
General Specifications | Rugged, shockproof synthetic rubber |
Battery | 3.7v 1700mA rechargeable lithium battery |
Relative humidity | 5-95% RH (non-condensing) |
Explosion-proof mark |
Ex ib IIB T3 Gb |
Explosion-proof certificate number |
CNEx14.2944 |

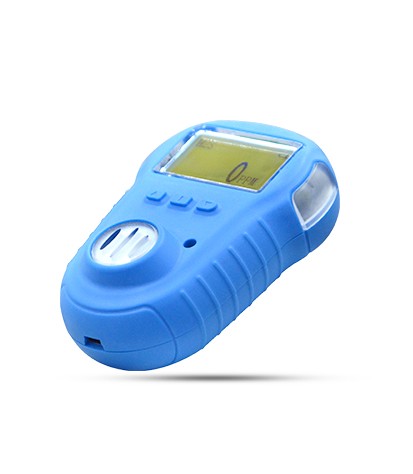

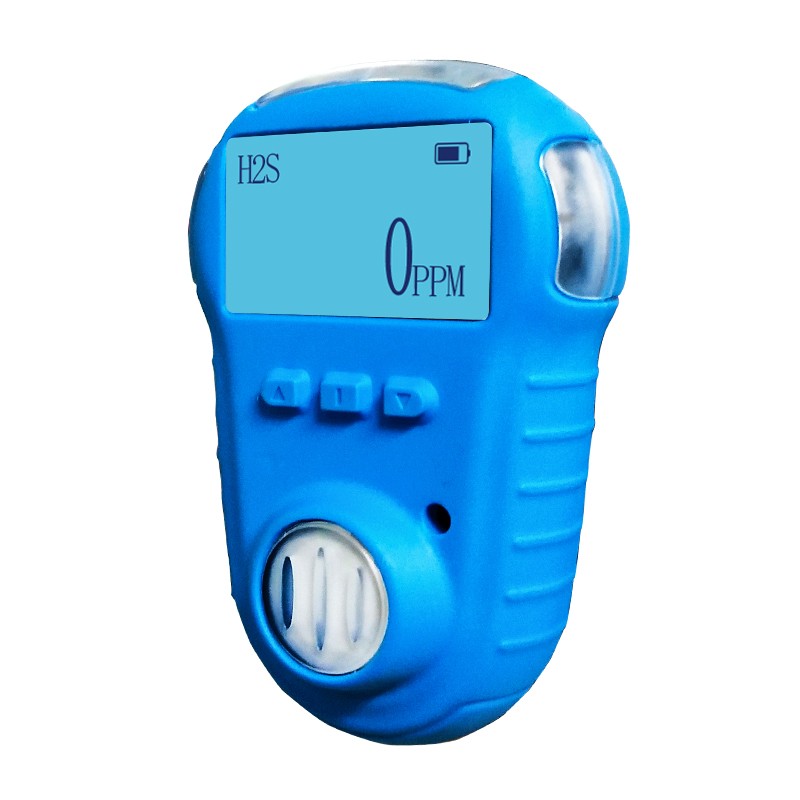

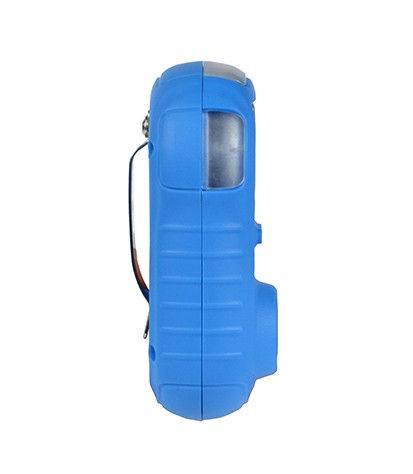

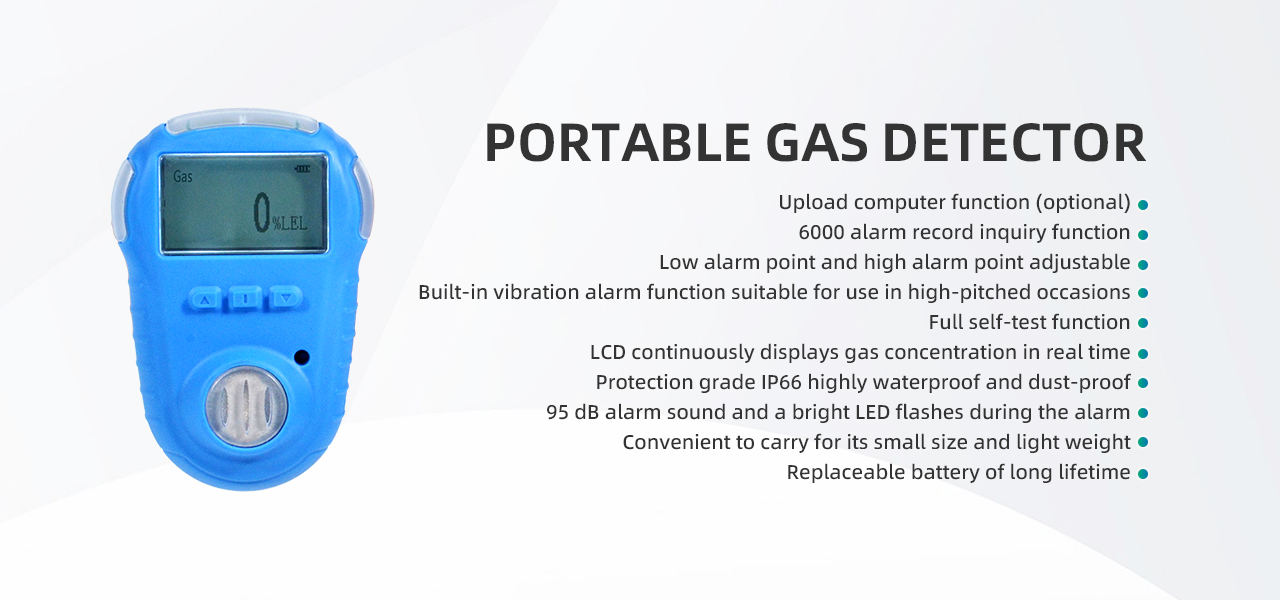

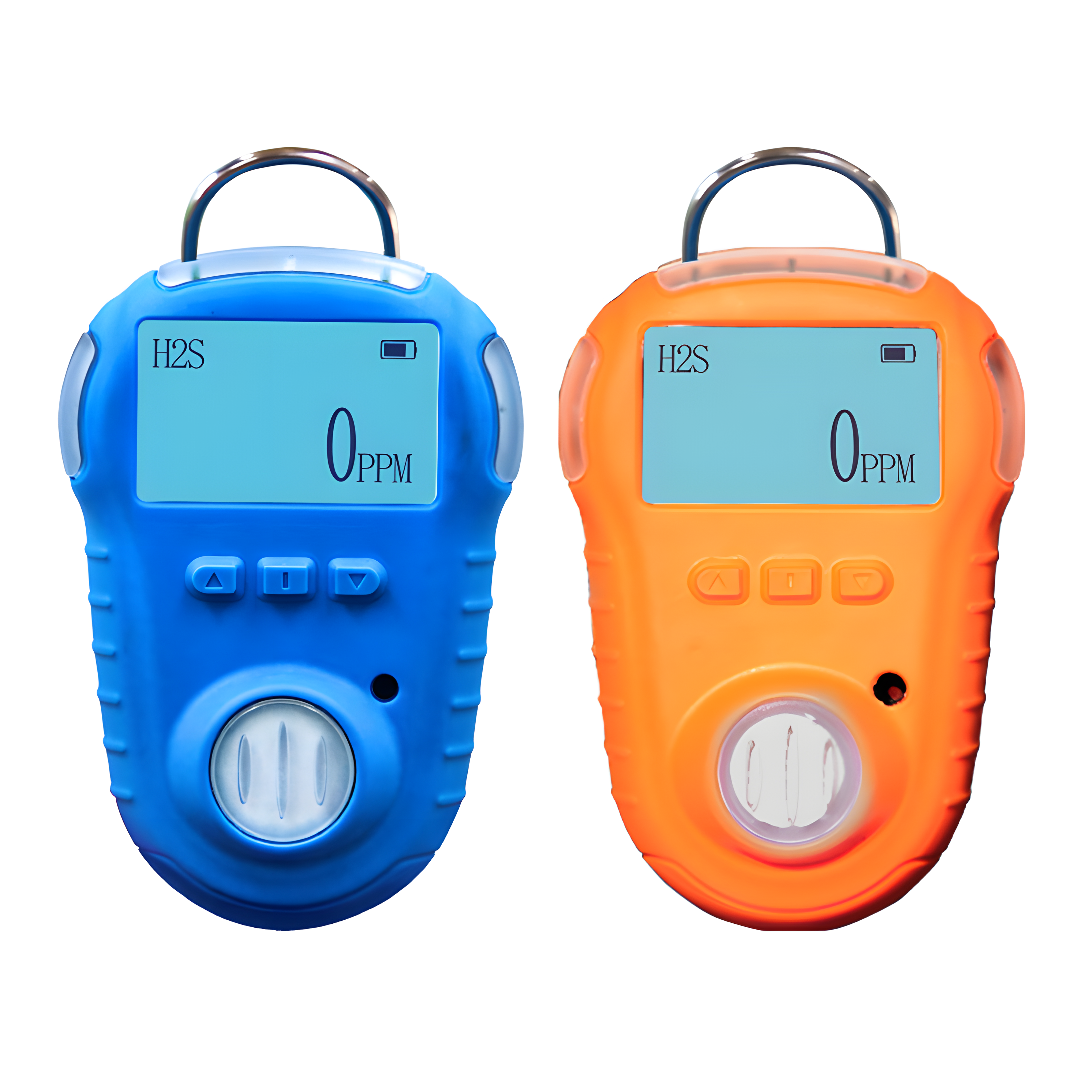

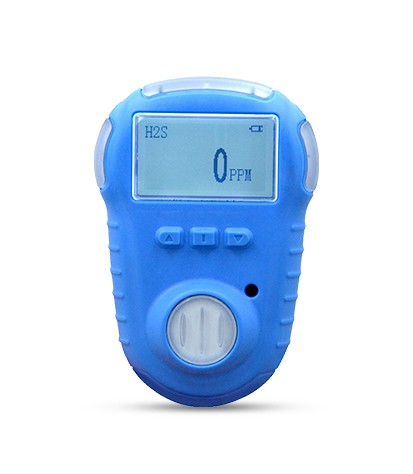

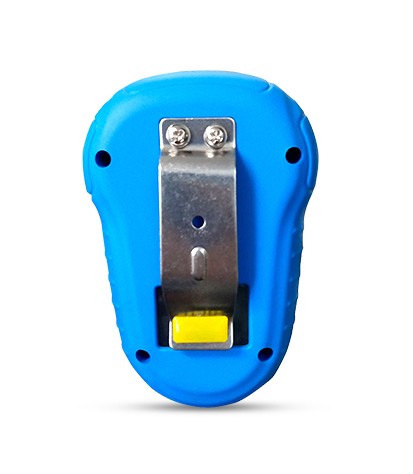

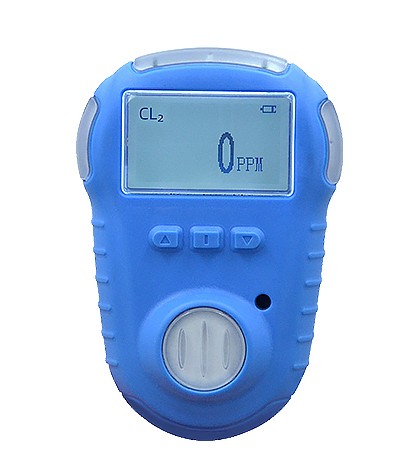

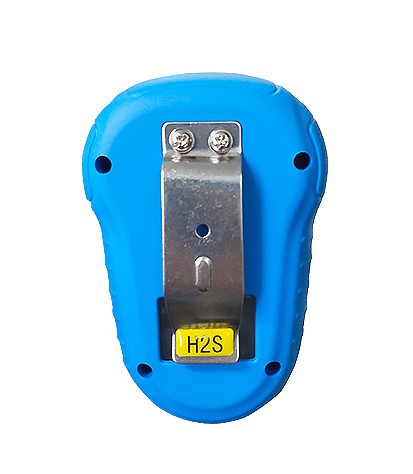

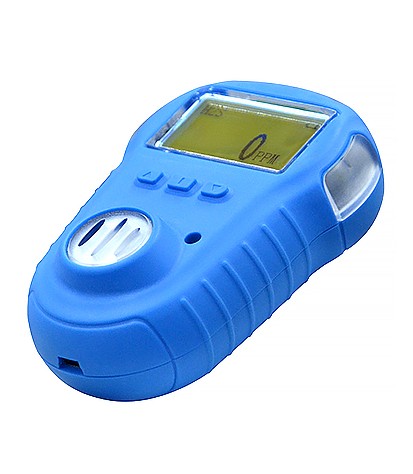

KP820 is the single gas detector with diffusion detection method, it adopts silicone rubber technology and ergonomic design, our KP820 has simple operation menu, and do not need to replace battery. It is waterproof and dust proof, with replaceable gas sensor module, lithium battery. For this device, its detecting data can be uploaded directly to the computer to view.
KP820 portable gas detector has a wide range of applications in metallurgy, petrochemicals, municipal services, paper-making, fire and other fields.
You can also choose the gas that you want to detect from the gas list below;
Gas detected |
Measuring Range |
Optional Range |
Resolution Ratio |
Response Time |
LEL -combustible gas |
0-100%LEL |
0-100%VOL(Infrared or catalytic ) |
1%LEL/1%vol |
≤10s |
carbon monoxide |
0-1000PPm |
0-500/2000/5000PPm |
0.1/1PPm |
≤10s |
TVOC |
0-100PPM |
0-100PPM |
0.1PPm/1PPM |
≤15s |
hydrogen |
0-100%LEL |
0-1000PPM |
1%LEL/1PPM |
≤15s |
natural gas |
0-100%LEL |
0-100%LEL |
1%LEL |
≤10s |
Oxygen-O2 |
0-30%VOL |
0-30%、0-100%VOL |
0.1%vol |
≤10s |
ozone |
0-10PPm |
0-20、100PPm |
0.01PPm/0.1PPM |
≤15s |
hydrogen sulfide-H2S |
0-100PPm |
0-50、200、1000PPm |
1/0.1PPm |
≤10s |
Methane-CH4 |
0-100%LEL |
0-100%VOL |
1%LEL/1%vol |
≤10s |
fluorine |
0-10PM |
0-1、10PPM |
1/0.1PPm |
≤15s |
hydrogen chloride |
0-20PPm |
0-20/50PPm/100PPM |
0.01/0.1PPm |
≤15s |
Nitrogen-N2 |
0-30%VOL |
0-30%VOL、100%VOL |
0.1%LEL/1PPM |
≤10s |
hydrogen |
0-100%LEL |
0-1000PPm |
1%LEL/0.1PPm |
≤15s |
chlorine |
0-20PPm |
0-10、100PPm |
0.1PPm |
≤15s |
ammonia gas |
0-100PPm |
0-50、500、1000PPm |
1/0.1PPm |
≤15s |
oxynitride |
0-20PPm |
0-50、1000PPm |
0.1/1PP |
For other gases and measuring ranges pleaase contact our sales directly for more details!
Readings | Large screen display of gas composition / concentration |
Display | LCD digital display of gas type /gas concentration/ status |
General Specifications | Rugged, shockproof synthetic rubber |
Battery | 3.7v 1700mA rechargeable lithium battery |
Relative humidity | 5-95% RH (non-condensing) |
Protection grade | IP67 high waterproof protective shell |
Operating temperature | -40°C to 50° C |
EMI / RFI | Complies with rules of EMC Directive 89/336 EEC |
Measuring range | 0-1ppm/0-10ppm/0-20ppm/0-100ppm |
Detecting gas | Ozone (O3) |
Calibration | automatic calibration and return to zero |
Back lighting | backlight turns on automatically in dark environment and alarming situation. You can also turn on by press the backlight button |
Detection principle | electrochemical sensor (with temperature compensation) |
Self-test | full self test function when start-up |
Alarm indication | clearly audible and visual way to indicate the alarm level |
Audible alarm | up to 95 dB pulse output at 0.25 meter from the detector |
Visual alarm | blinking, wide-angle alarm lens and 2 red alarm LED and alarming LCD readings |
Other alarms | low battery; turn off warning; sensor malfunction, over range. |
Detection accuracy | 3% FS |
Interface Definition | U3 port (USB) |
Storage capacity | MAX 6000 records |
Appearance Size | (length 99 * width 66 * height 33) mm |
Weight | 320g |
Executive Standard | GB15322.3-2003 |
Production license | Yu made 01000109 number |
Explosion-proof mark | Ex ib IIB T3 Gb |
Explosion-proof certificate number |
CNEx14.2944 |

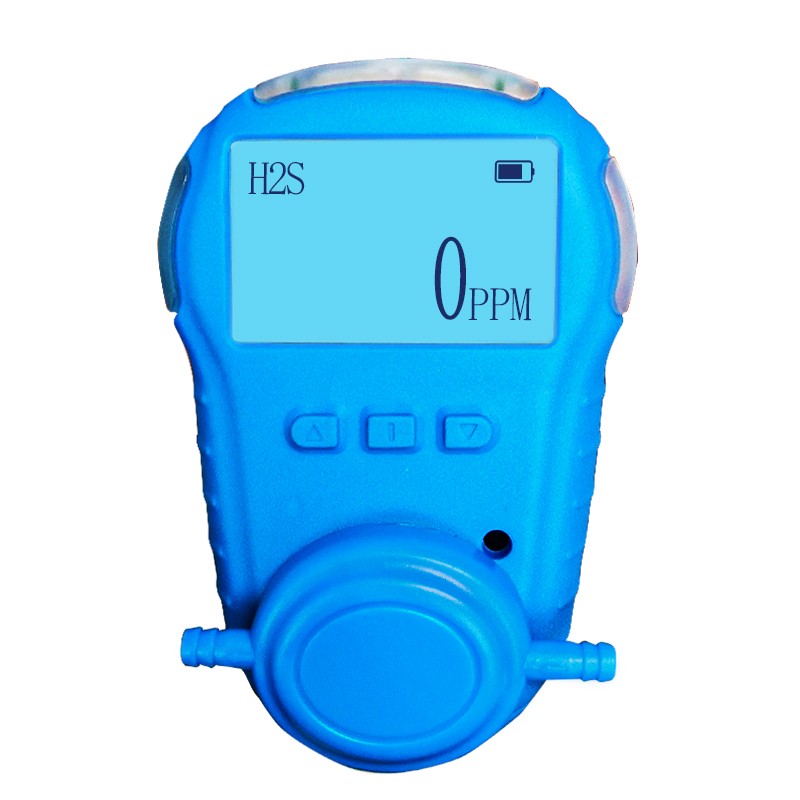

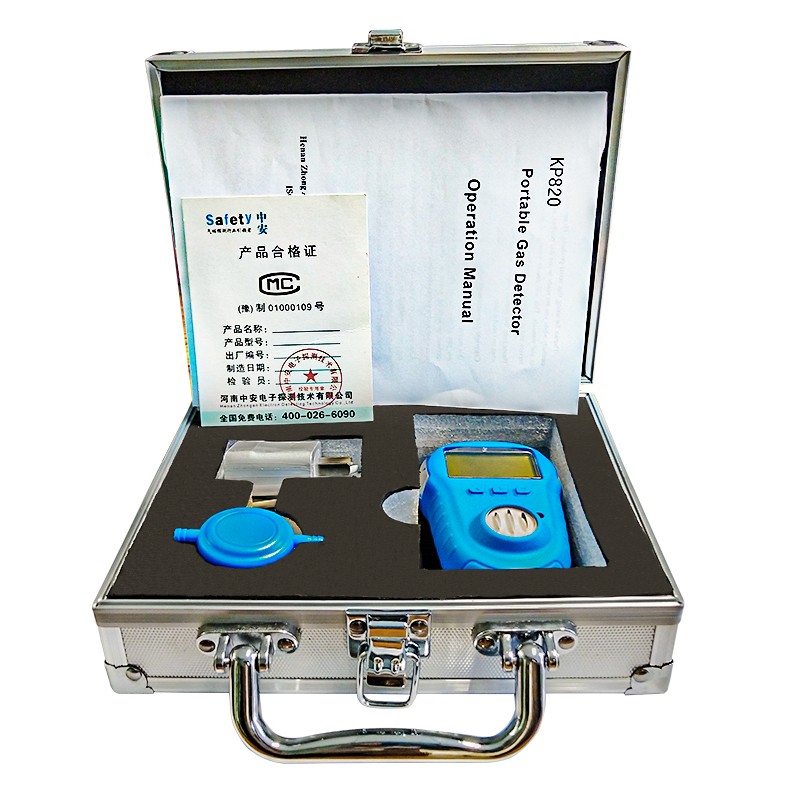

Product list: one detector, one set charger and matched charger line, one calibration cover, one operation manual, one quality certificate and guarantee card, one factory inspection report.
