Concentration unit | %LEL 、%VOL、 PPM |
Measurement accuracy | ±3%F.S; |
Sensor signal | 4-20MA |
Alarm point | two stage alarm;or free set by user |
Indication mode | LED |
Mobile/whatsapp: +86-13333857585
Email: [email protected]

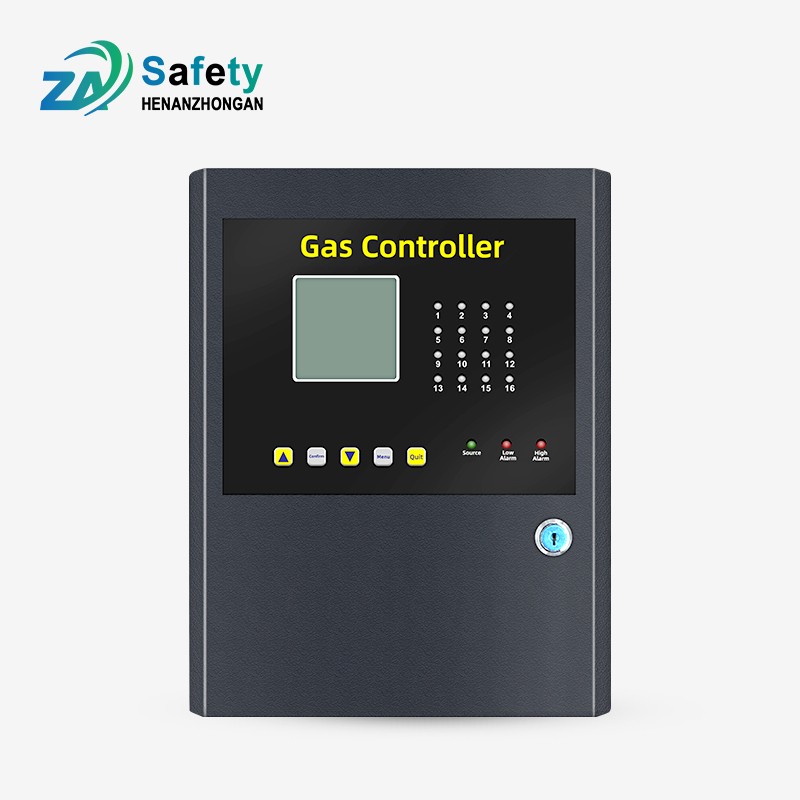

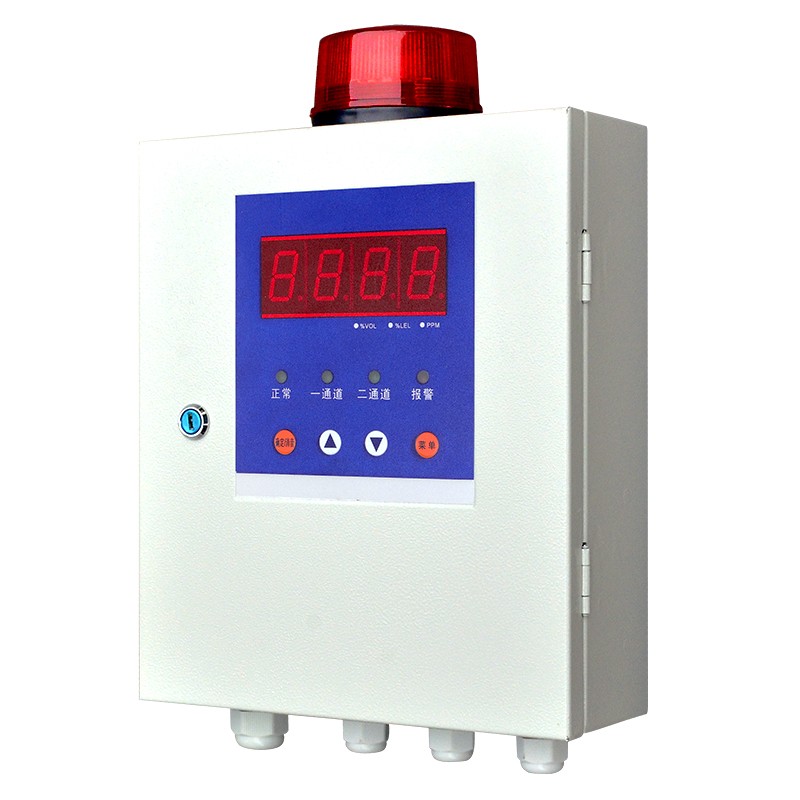

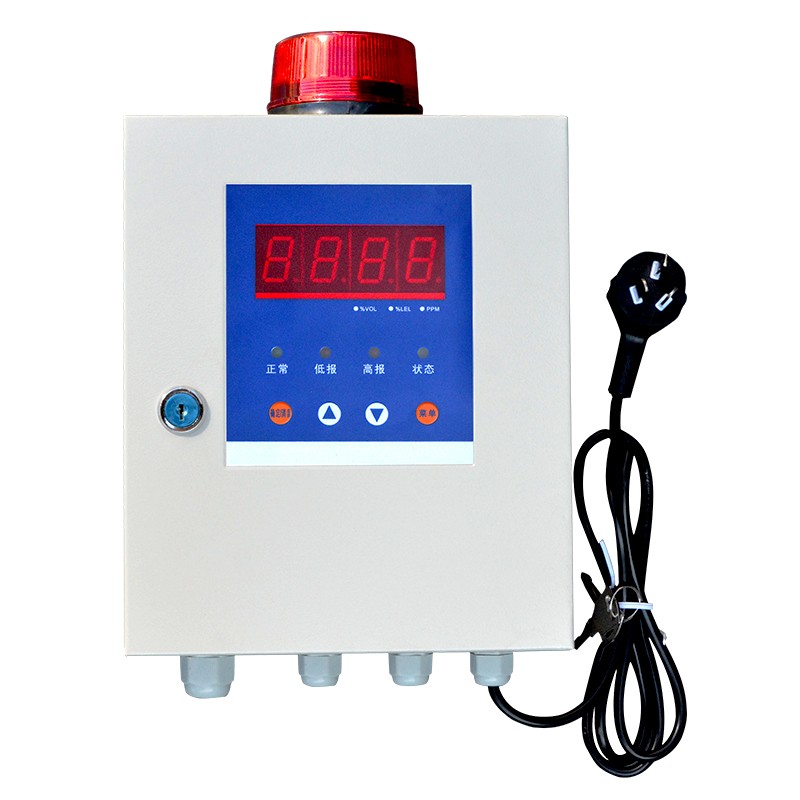

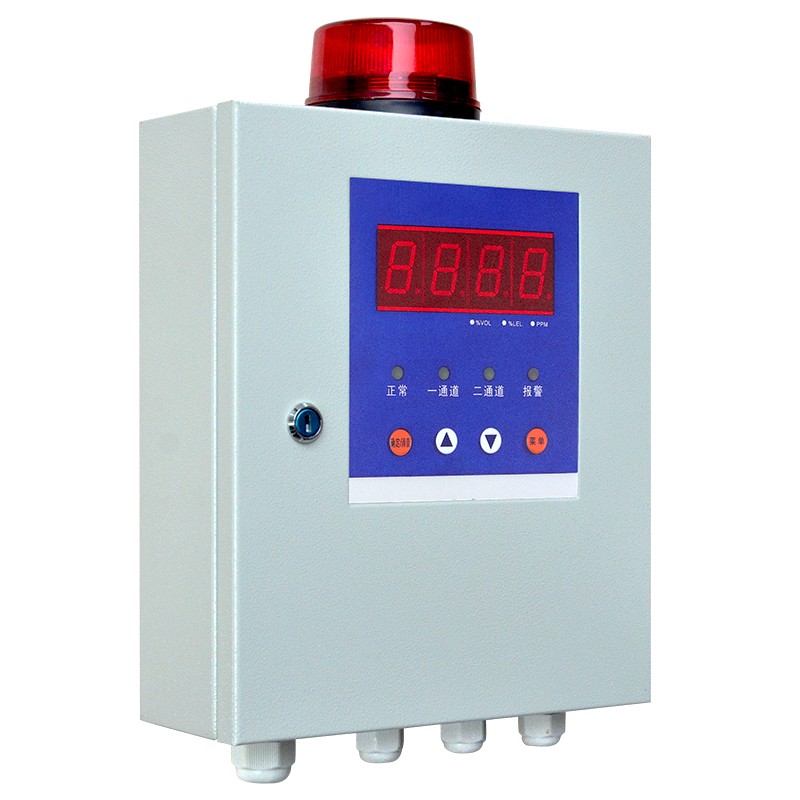

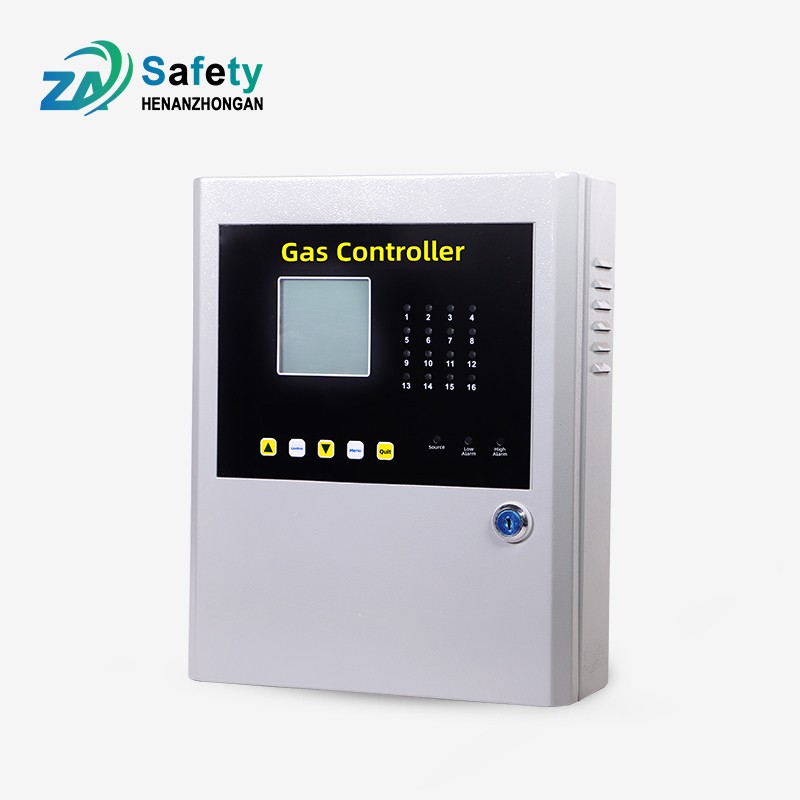

QD6000 type multi-point monitoring combustible gas detection alarm controller, used to detect flammable gas in the air or liquid vapor explosion within the lower limit of content, can take a number of detection probe, while multi-point centralized control. The system adopted microprocessor as control unit, high performance catalytic gas sensor as detection sensor, high sensitivity, fast response. When the combustible gas concentration in the environment reaches or exceeds the preset alarm value, the controller will alarm immediately , and driving the exhaust or other peripheral action, to prevent fire accidents and explosion,so that protect life, this system widely used in factories, oil depots, liquefied gas station, gas station, petrol station, spraying room etc. And other need fire and explosion place safety alarm.
The bellow gases are available
Gas detected |
Measuring Range |
Optional Range |
Resolution Ratio |
Response Time |
LEL -combustible gas |
0-100%LEL |
0-100%VOL(Infrared or catalytic ) |
1%LEL/1%vol |
≤10s |
carbon monoxide |
0-1000PPm |
0-500/2000/5000PPm |
0.1/1PPm |
≤10s |
TVOC |
0-100PPM |
0-100PPM |
0.1PPm/1PPM |
≤15s |
hydrogen |
0-100%LEL |
0-1000PPM |
1%LEL/1PPM |
≤15s |
natural gas |
0-100%LEL |
0-100%LEL |
1%LEL |
≤10s |
Oxygen-O2 |
0-30%VOL |
0-30%、0-100%VOL |
0.1%vol |
≤10s |
ozone |
0-10PPm |
0-20、100PPm |
0.01PPm/0.1PPM |
≤15s |
hydrogen sulfide-H2S |
0-100PPm |
0-50、200、1000PPm |
1/0.1PPm |
≤10s |
Methane-CH4 |
0-100%LEL |
0-100%VOL |
1%LEL/1%vol |
≤10s |
fluorine |
0-10PM |
0-1、10PPM |
1/0.1PPm |
≤15s |
hydrogen chloride |
0-20PPm |
0-20/50PPm/100PPM |
0.01/0.1PPm |
≤15s |
Nitrogen-N2 |
0-30%VOL |
0-30%VOL、100%VOL |
0.1%LEL/1PPM |
≤10s |
hydrogen |
0-100%LEL |
0-1000PPm |
1%LEL/0.1PPm |
≤15s |
chlorine |
0-20PPm |
0-10、100PPm |
0.1PPm |
≤15s |
ammonia gas |
0-100PPm |
0-50、500、1000PPm |
1/0.1PPm |
≤15s |
oxynitride |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
≤15s |
methanal |
0-20PPm |
0-50、100PPm |
1/0.1PPm |
≤15s |
sulfur dioxide |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
≤15s |
nitric oxide |
0-250PPm |
0-500、1000PPm |
1PPm |
≤15s |
nitrogen dioxide |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
≤15s |
phosphine |
0-20PPm |
0-20、100PPm |
0.1PPm |
≤15s |
acrylonitrile |
0-100PPM |
0-100PPm |
0.1/1PPm |
≤15s |
carbon dioxide |
0-5000PPm |
0-1%/5%/10%VOL
(Infrared ) |
1PPM/0.01%VOL |
≤15s |
hydrogen fluoride |
0-10PPm |
0-1、10、50、100PPM |
0.01/0.1PPm |
≤15s |
Xylene/methylbenzene |
0-20PPm |
0-5、10、50、100PPm |
0.01/0.1PPm |
≤15s |
oxirane |
0-100PPm |
0-100PPm |
1/0.1PPm |
≤15s |
For other gases and measuring ranges, please contact us directly! |
Concentration unit |
%LEL 、%VOL、 PPM |
Measurement accuracy |
±3%F.S |
Sensor signal |
4-20MA |
Alarm point |
two stage alarm;or free set by user |
Preset value |
(EX)low alarm:20%LEL high alarm:50%LEL |
Indication mode |
LED |
Output: |
switch quantity, MAX 3.0 A |
Work style |
the fixed installation,wall-mounted |
Network capacity |
1 channel 2channel |
Working environment |
Natural diffusion,continuous working |
Temperature |
-20 - 50℃ ;humidity < 95%RH |
Working power supply |
AC220V±l0% 50HZ |
Power |
monitor Max 6W, sensor Max 1W |
Cable dimension |
≥RVVP 3×1.5 mm2 |
Lline length |
≤1000m |
