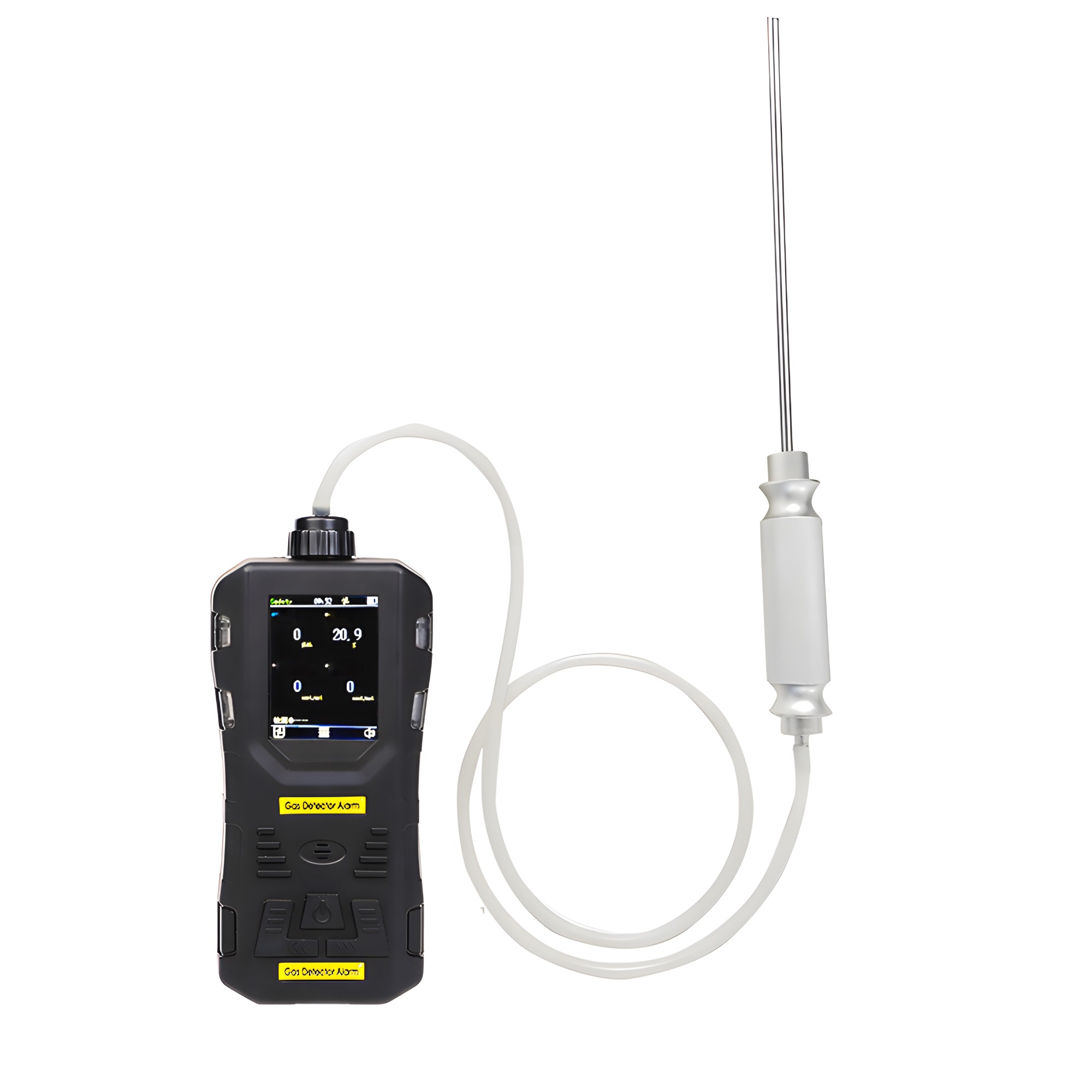

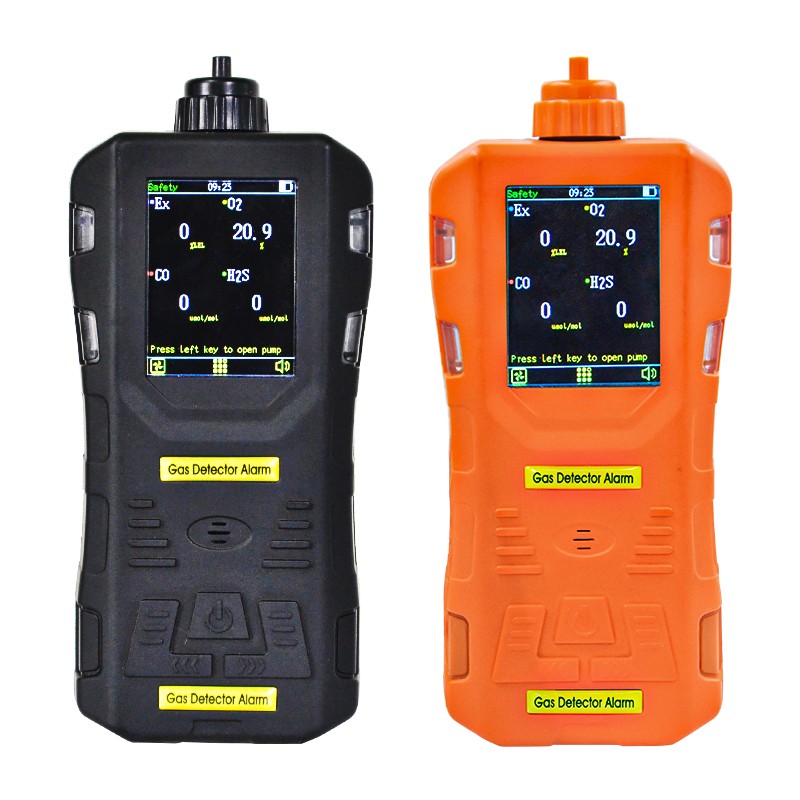

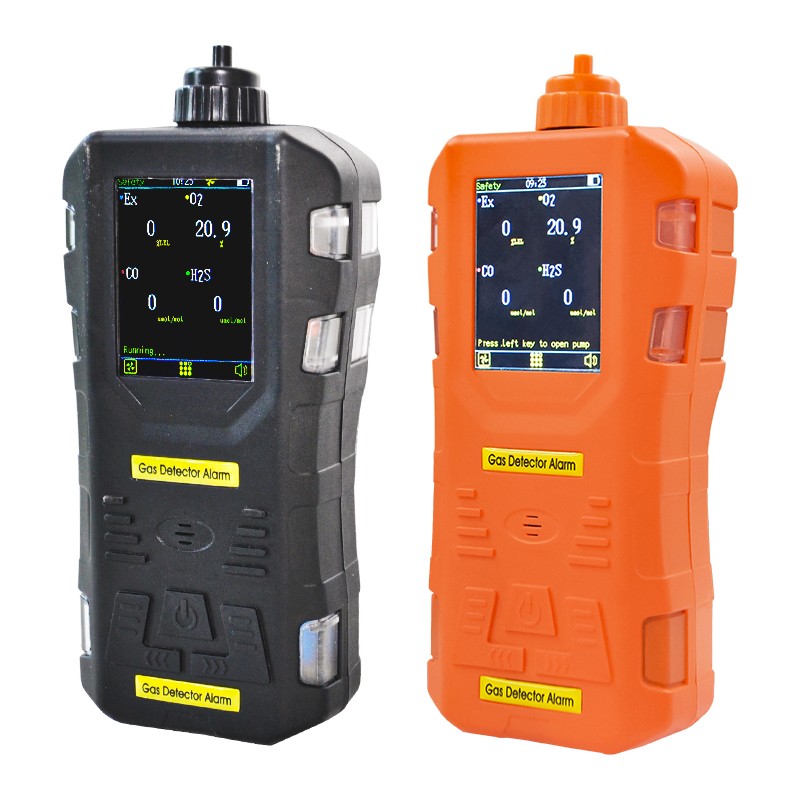

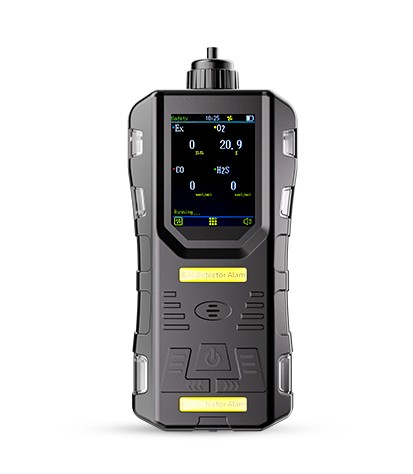

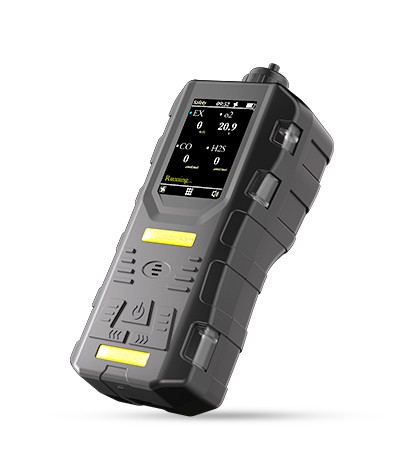

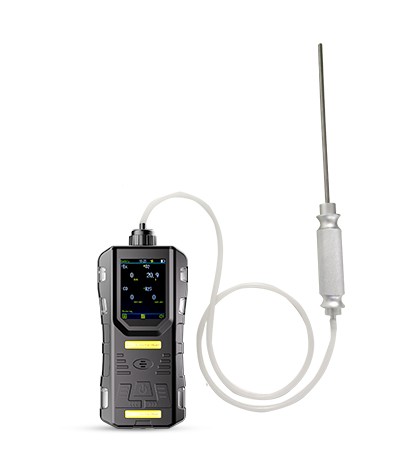

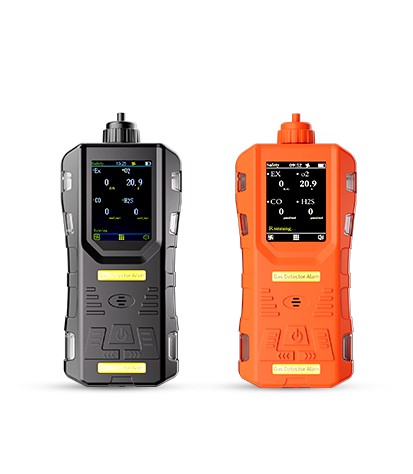

ZhongAn S316 pump suction gas detector is a multi-in-one gas detector. It can continuously detect combustible, oxygen, carbon monoxide, hydrogen sulfide and other toxic gases in ambient air, and detect up to 5 gases at the same time. This instrument is waterproof design and combine with rubber shell, to meet the harsh requirements of harsh environment.
ZhongAn S316 gas detector uses pump-suction mode for detecting, and high quality gas sensors are used for sensitive components, which has excellent sensitivity and repeatability. The instrument is controlled by embedded micro-computer. It has simple operation, complete functions, high reliability, multiple adaptive abilities, and is intuitive and clear with graphic and text liquid crystal display.
The below gases are available
Gas detected
Measuring Range
Optional Range
Resolution Ratio
Response Time
LEL -combustible gas
0-100%LEL
0-100%VOL（Infrared or catalytic ）
1%LEL/1%vol
≤10s
carbon monoxide
0-1000PPm
0-500/2000/5000PPm
0.1/1PPm
≤10s
TVOC
0-100PPM
0-100PPM
0.1PPm/1PPM
≤15s
hydrogen
0-100%LEL
0-1000PPM
1%LEL/1PPM
≤15s
natural gas
0-100%LEL
0-100%LEL
1%LEL
≤10s
Oxygen-O2
0-30%VOL
0-30%、0-100%VOL
0.1%vol
≤10s
ozone
0-10PPm
0-20、100PPm
0.01PPm/0.1PPM
≤15s
hydrogen sulfide-H2S
0-100PPm
0-50、200、1000PPm
1/0.1PPm
≤10s
Methane-CH4
0-100%LEL
0-100%VOL
1%LEL/1%vol
≤10s
fluorine
0-10PM
0-1、10PPM
1/0.1PPm
≤15s
hydrogen chloride
0-20PPm
0-20/50PPm/100PPM
0.01/0.1PPm
≤15s
Nitrogen-N2
0-30%VOL
0-30%VOL、100%VOL
0.1%LEL/1PPM
≤10s
hydrogen
0-100%LEL
0-1000PPm
1%LEL/0.1PPm
≤15s
chlorine
0-20PPm
0-10、100PPm
0.1PPm
≤15s
ammonia gas
0-100PPm
0-50、500、1000PPm
1/0.1PPm
≤15s
oxynitride
0-20PPm
0-50、1000PPm
0.1/1PPm<

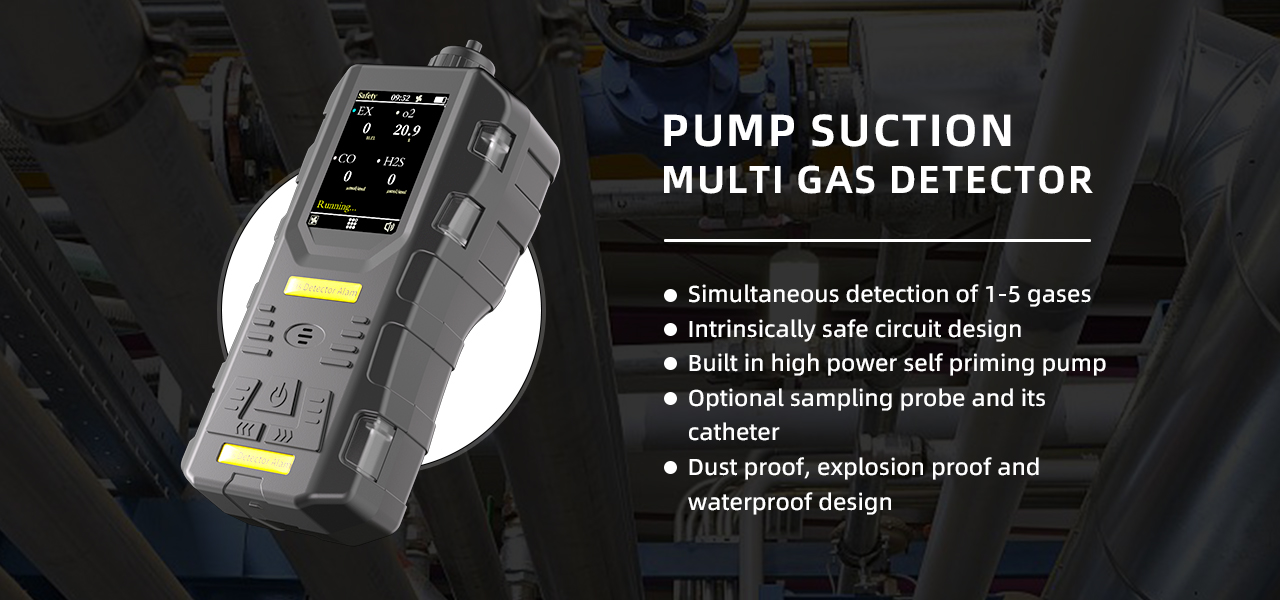

Functions Features
2.4 inch high definition full-color view IPS industrial screen
Technical indicators and gas concentration values display
Shell adopts high IP encapsulation technology
Can detect 1-4 gases at the same time, sensors can be assembled as requested
{C}5-{C}gas detector can be customized
Data storage function and can store 5000 pieces of data.
Dust-proof, explosion-proof and waterproof design
Intrinsically safe circuit design, antistatic and electromagnetic interference
Built-in high-power carbon film self-priming pump, quick response time
Setting time and alarm function can be adjusted freely
Technical Parameters
Detection mode
pump-suction type
Sensor types:
catalysis, electrochemistry, PID, infrared
Response time
<20s
Display error
±5% FS
Indicating mode
LCD display real-time data and system status, light-emitting diode, sound and vibration indication alarm, fault and undervoltage
