Detection principle |
High Precision PID Photoion |
Gas detected |
VOCS gas |
Sampling mode |
Pump-suction measurement |
Detection range |
0~10、200、2000、10000ppm,can be customized |
Detection principle |
High Precision PID Photoion |
Gas detected |
VOCS gas |
Sampling mode |
Pump-suction measurement |
Detection range |
0~10、200、2000、10000ppm,can be customized |
Resolution ratio |
0.01ppm(0~100 ppm);0.1ppm(0~1000 ppm);1ppm(大于1000ppm) |

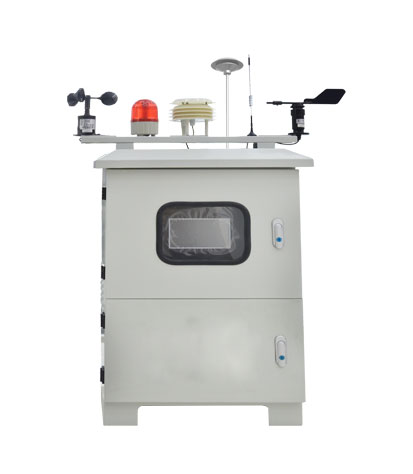

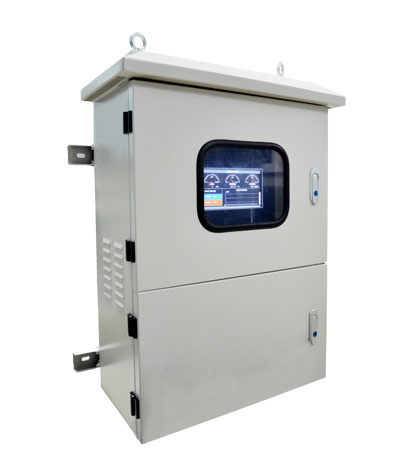

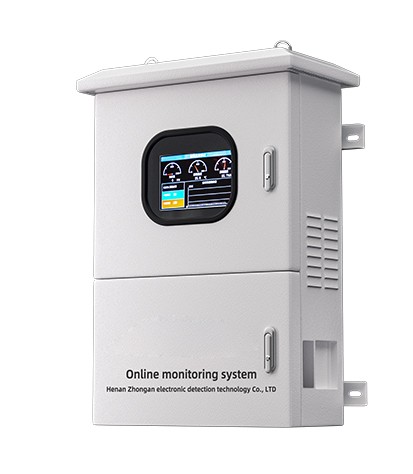

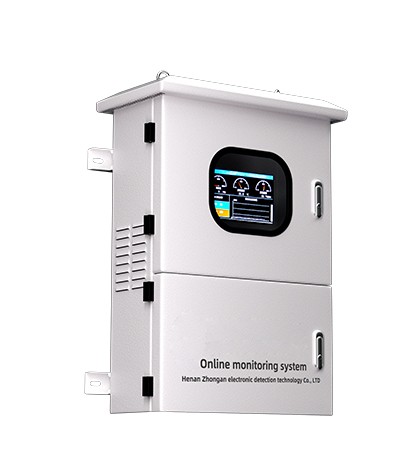

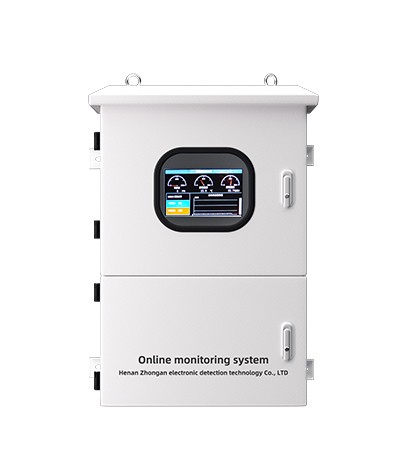

The S400-T VOCS on-line filtration monitoring system can be used to detect VOCS gas concentration, Once the gas concentration exceeds the standard, it will alarm and prompt. It can accurately detect VOCS gas concentration and display real-time concentration value and standard signal output on site. It has the advantages of stable signal, high sensitivity and accuracy. Flameproof wiring mode is suitable for all kinds of dangerous places.
Detection principle |
High Precision PID Photoion |
Gas detected |
VOCS gas |
Sampling mode |
Pump-suction measurement |
Detection range |
0~10、200、2000、10000ppm,can be customized |
Resolution ratio |
0.01ppm(0~100 ppm);0.1ppm(0~1000 ppm);1ppm(大于1000ppm) |
Response time |
T90≤30S |
Environment temperature |
(-10-55)℃, Pretreatment system need to be customized or selected for higher temperature environments |
Power |
AC220V±10% 50Hz |
Output signal |
4~20mA, Bus RS485-RTU (can be uploaded to environmental protection department for communication with digitizer) |
Relative humidity |
≤95%RH(Non-condensation place), Pretreatment system need to be customized or selected for use in higher humidity environments |

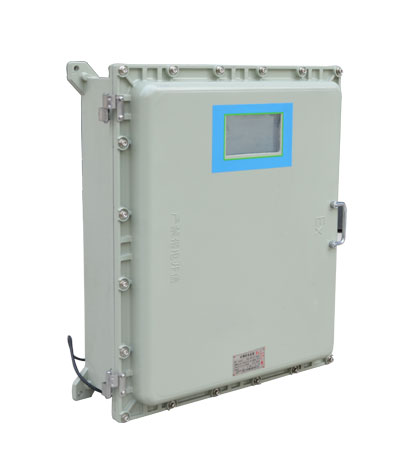

Explosive proof mode |
Flameproof (customized) |
Ingress protection |
IP65 |
Alarm mode |
Sound and light alarm, alarm point can be set |
