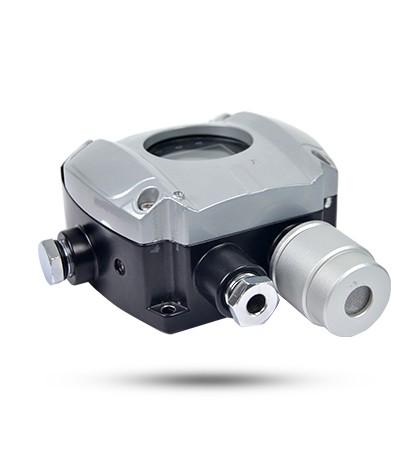

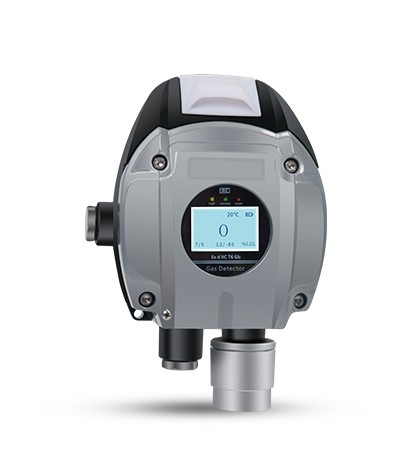

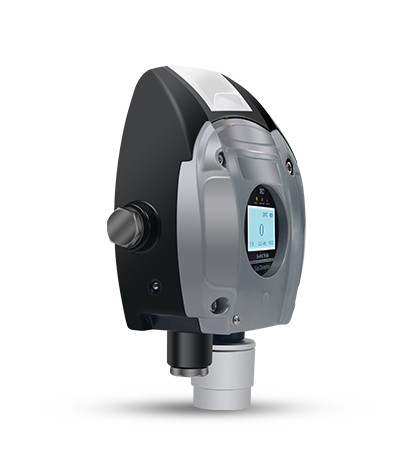

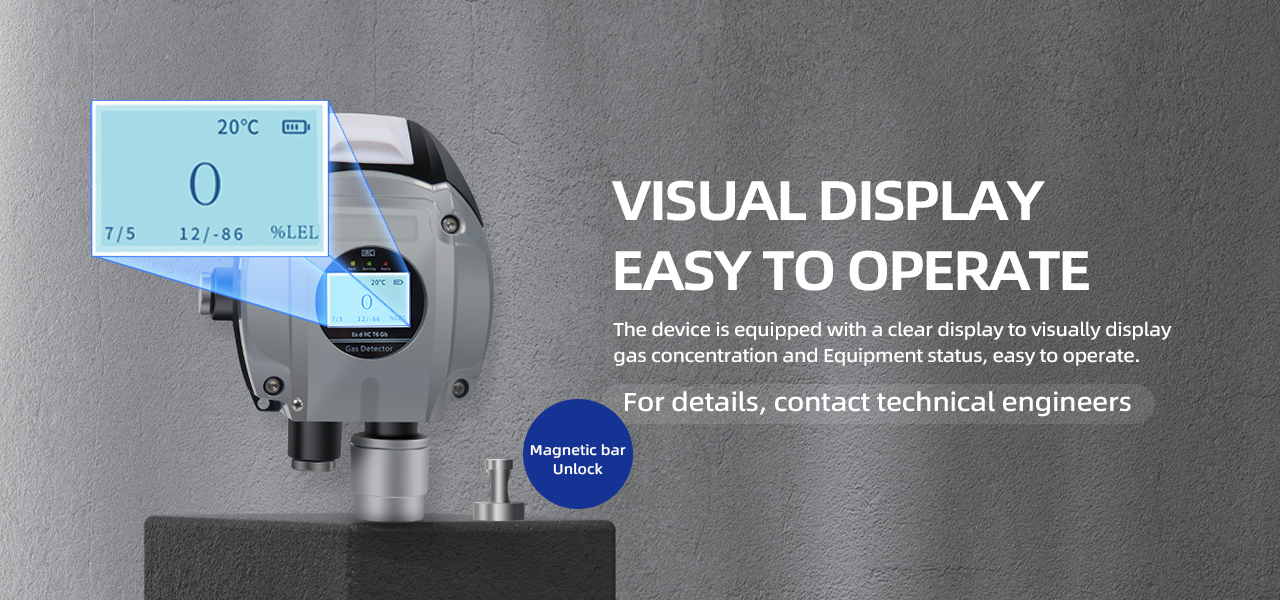

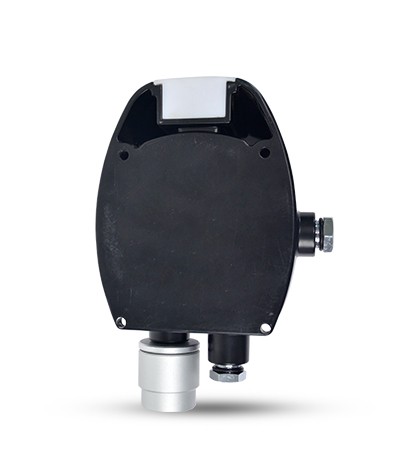

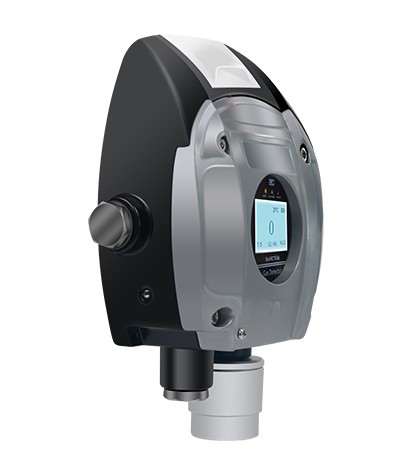

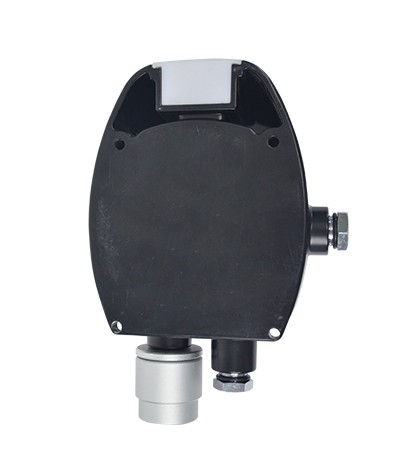

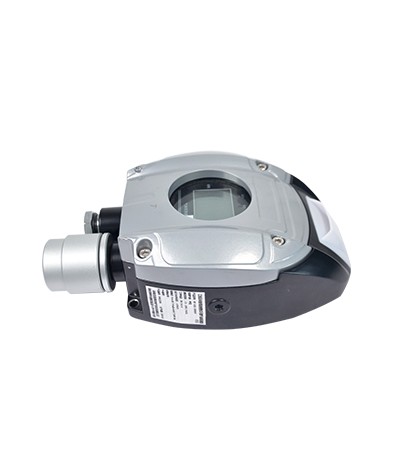

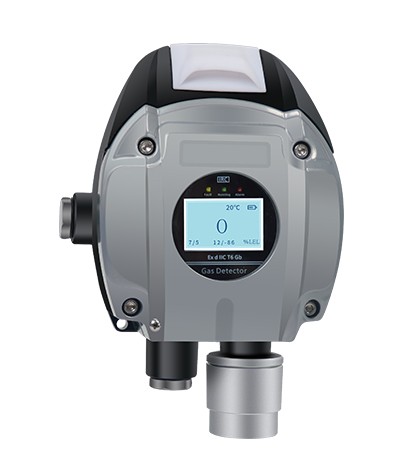

The S400-WX fixed gas detector for industrial and commercial use is a low-power gas detector designed by our company, suitable for industrial sites and commercial places. It is primarily used in environments such as gas stations, refueling stations, and storage and transportation warehouses for flammable and explosive gases, where gas concentration and gas leakage need to be detected. This advanced low-power gas detector employs a high-performance infrared gas sensor and microcomputer technology, combined with excellent low-power design. It features power saving, intuitive display, good repeatability, long service life, magnetic mounting, no wiring, easy maintenance, and convenient operation.

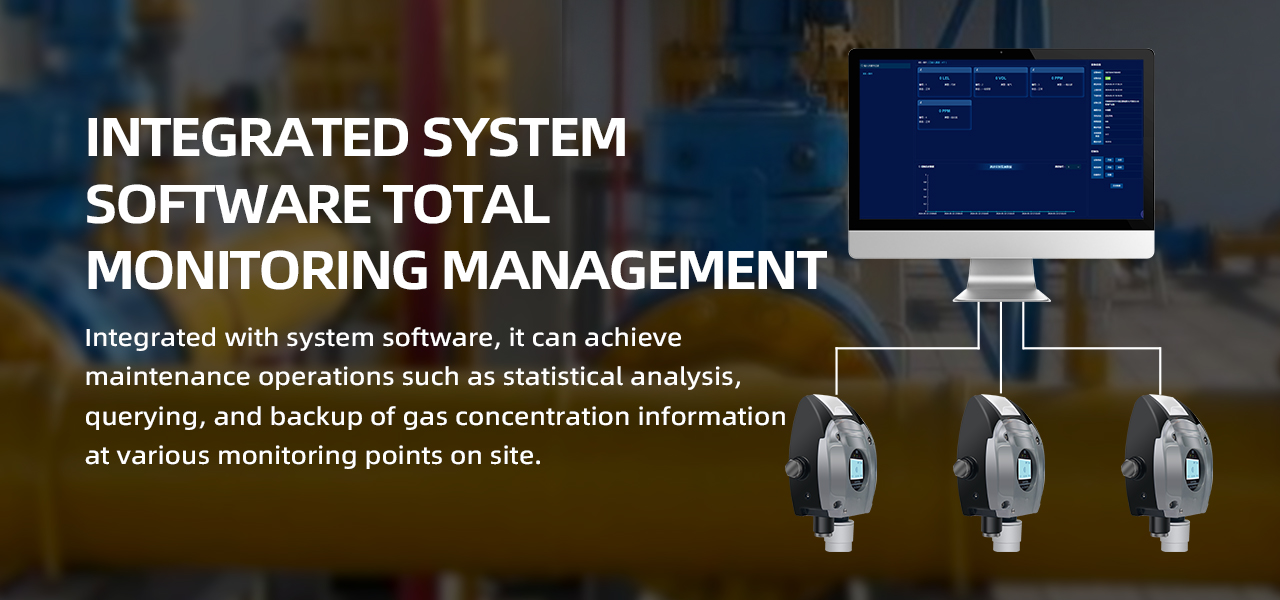

This detector is battery-powered and can transmit gas concentration information, battery status, anomaly types, and other information to the control host via LoRa wireless communication, either at regular intervals or based on events (alarms). When used with system software, it allows for the statistical analysis, query, backup, and other maintenance operations of gas concentration information from various monitoring points on-site.
Functions Features
Technical Parameters
Product Model
S400-WX
Measurement Range
(3 - 100)% LEL
Response Time
<30 seconds
Working Mode
Continuous working type. Sampling method: Free diffusion.
Sensor Type
Low-power sensor
Detected Gas
Combustible
Repeatability
<2%
Zero Drift
±2% FS
Power Consumption
<3W
Display Mode
LCD
Relative Humidity
<93%
Ambient Temperature
-10°C to +55°C
Ambient Pressure
86 kPa to 106 kPa
Common Gas Parameter listing
Gas detected
Measuring Range
Optional Range
Resolution Rat
Response Time
LEL -combustible gas
0-100%LEL
0-100%VOL（Infrared or catalytic ）
1%LEL/1%vol
≤10s
carbon monoxide
0-1000PPm
0-500/2000/5000PPm
0.1/1PPm
≤10s
TVOC
0-100PPM
0-100PPM
0.1PPm/1PPM
≤15s
hydrogen
0-100%LEL
0-1000PPM
1%LEL/1PPM
≤15s
natural gas
0-100%LEL
0-100%LEL
1%LEL
≤10s
Oxygen-O2
0-30%VOL
0-30%、0-100%VOL
0.1%vol
≤10s
ozone
0-10PPm
0-20、100PPm
0.01PPm/0.1PPM
≤15s
hydrogen sulfide-H2S
0-100PPm
0-50、200、1000PPm
1/0.1PPm
≤10s
Methane-CH4
0-100%LEL
0-100%VOL
1%LEL/1%vol
≤10s
fluorine
0-10PM
0-1、10PPM
1/0.1PPm
≤15s
hydrogen chloride
0-20PPm
0-20/50PPm/100PPM
0.01/0.1PPm
≤15s
Nitrogen-N2
0-30%VOL
0-30%VOL、100%VOL
0.1%LEL/1PPM
≤10s
hydrogen
0-100%LEL
0-1000PPm
1%LEL/0.1PPm
≤15s
chlorine
0-20PPm
0-10、100PPm
0.1PPm
≤15s
ammonia gas
0-100PPm
0-50、500、1000PPm
1/0.1PPm
≤15s
oxynitride
0-20PPm
0-50、1000PPm
0.1/1PPm
≤15s
methanal
0-20PPm
0-50、100PPm
1/0.1PPm
≤15s
sulfur dioxide
0-20PPm
0-50、1000PPm
0.1/1PPm
≤15s
nitric oxide
0-250PPm
0-500、1000PPm
1PPm
≤15s
nitrogen dioxide
0-20PPm
0-50、1000PPm
0.1/1PPm
≤15s
phosphine
0-20PPm
0-20、100PPm
0.1PPm
≤15s
acrylonitrile
0-100PPM
0-100PPm
0.1/1PPm
≤15s
carbon dioxide
0-5000PPm
0-1%/5%/10%VOL(Infrared )
1PPM/0.01%VOL
≤15s
hydrogen fluoride
0-10PPm
0-1、10、50、100PPM
0.01/0.1PPm
≤15s
Xylene/methylbenzene
0-20PPm
0-5、10、50、100PPm
0.01/0.1PPm
≤15s
oxirane
0-100PPm
0-100PPm
1/0.1PPm
≤15s
For other gases and measuring ranges, please contact us directly!
