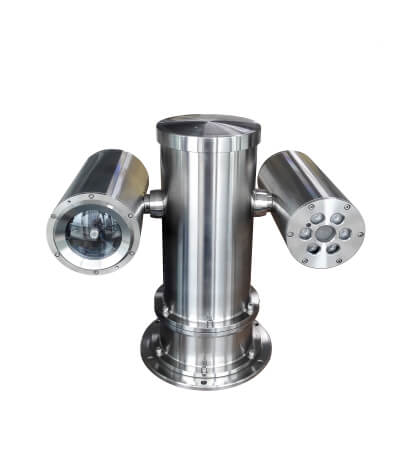

S350YS fixed scanning laser gas telemetry consists of two parts: controller and upper controller,based on the principle of laser absorption spectroscopy, the concentration of methane gas in the detection area of the laser transceiver can be monitored online and remotely in real time,and it have the functions of signal acquisition, conversion and transmission.
S350YS fixed scanning laser gas telemetry consists of two parts: controller and upper controller,based on the principle of laser absorption spectroscopy, the concentration of methane gas in the detection area of the laser transceiver can be monitored online and remotely in real time,and it have the functions of signal acquisition, conversion and transmission.
Three-dimensional space active detection
Horizontal 360°, longitudinal 180° rotation scan
Camera synchronization capture
Live sound and light alarm
Background computer monitoring
Detection gas |
CH4 |
Detection range: |
0 to 5000pm .m |
Sensitivity |
5ppm•m |
Detection effective distance |
0 ~ 100 meters |
Video camera |
with video camera |
PTZ scanning angle |
0 ~ 360 °, -90 ~ +90 ° |
Response time |
0.5 seconds |
Working power |
AC220V |
Output interface: |
RS485 |
Explosion-proof mark |
Ex ib IIB T4 Gb |
Protection level: |
IP65 |
Net weight |
30kg |
Installation method |
seat type installation |
Temperature |
-25~+50°C |
|
Humidity : ( 0 ~ 90 ) % RH without condensation |
