esponse spectral range |
185-260μm |
Response time |
15s |
Viewing angle range |
≤110 ° |
Detection distance |
Class I |
Ambient temperature |
-10 ~ 55 ℃ |
Mobile/whatsapp: +86-13333857585
Email: [email protected]

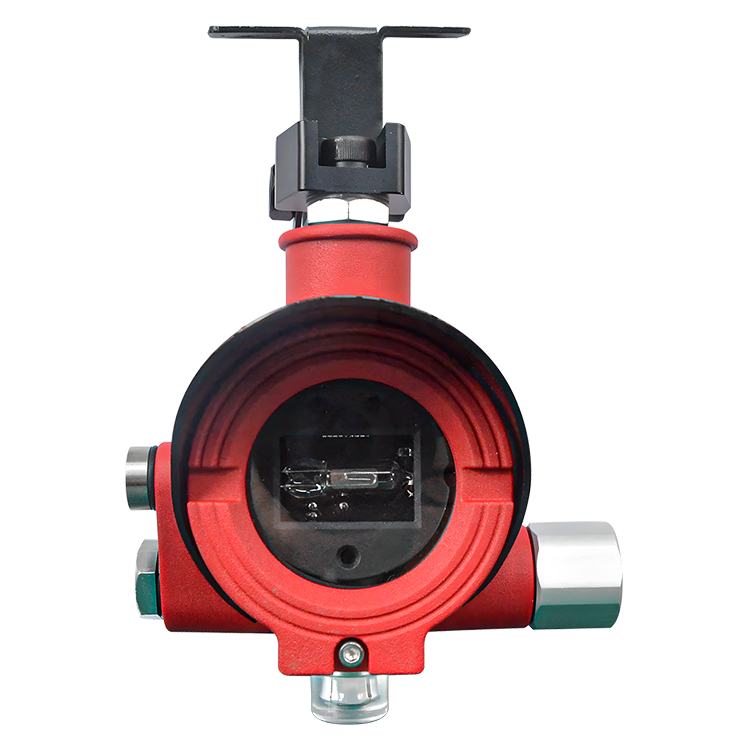

The detector is particularly suitable for metals such as sodium, magnesium, etc .; explosives; hydrogen, hydride, ammonia, silane and other fires. Use in an environment where water vapor and dust are concentrated will reduce the sensitivity of the detector.
The detector is not suitable for use in environments with arc welding, ultraviolet light and outdoor.
Response spectral range |
185-260μm |
Response time |
15s |
Viewing angle range |
≤110 ° |
Detection distance |
Class I |
Ambient temperature |
-10 ~ 55 ℃ |
Environmental humidity |
≤95% RH |
Pressure range |
86 ~ 106Kpa |
Working voltage |
DC24V |
Working current |
current≤25mA, alarm current≤35mA |
Executive standard |
GB127991-2006 |
Explosion-proof grade |
EXdⅡCT6 |
Protection grade |
IP66 |
Signal output |
Switching relay contact output, RS-485 (built-in DIP switch, can set the address of the detector) |
Installation method |
wall or ceiling |
Cable outlet thread |
20mmX1.5mm free conversion G1 / 2 optional |
Dimensions |
(190X160X110) mm |
Shell material: |
die-cast aluminum |
Weight |
1Kg |
Advantages |
dustproof, explosion-proof, corrosion-proof |
