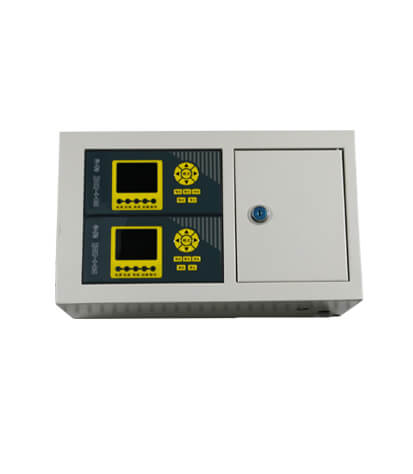

QD6000 Reel packing gas alarm controller is used in industrial field. The instrument adopts high-precision single-chip microcomputer as the processing core, which can receive and send a variety of industrial signals, color LCD display, Chinese operation menu, and wall mounted installation is convenient. The host can be installed on top of each other.
The below gases are available
Gas detected |
Measuring Range |
Optional Range |
Resolution Ratio |
Response Time |
LEL -combustible gas |
0-100%LEL |
0-100%VOL(Infrared or catalytic ) |
1%LEL/1%vol |
≤10s |
carbon monoxide |
0-1000PPm |
0-500/2000/5000PPm |
0.1/1PPm |
≤10s |
TVOC |
0-100PPM |
0-100PPM |
0.1PPm/1PPM |
≤15s |
hydrogen |
0-100%LEL |
0-1000PPM |
1%LEL/1PPM |
≤15s |
natural gas |
0-100%LEL |
0-100%LEL |
1%LEL |
≤10s |
Oxygen-O2 |
0-30%VOL |
0-30%、0-100%VOL |
0.1%vol |
≤10s |
ozone |
0-10PPm |
0-20、100PPm |
0.01PPm/0.1PPM |
≤15s |
hydrogen sulfide-H2S |
0-100PPm |
0-50、200、1000PPm |
1/0.1PPm |
≤10s |
Methane-CH4 |
0-100%LEL |
0-100%VOL |
1%LEL/1%vol |
≤10s |
fluorine |
0-10PM |
0-1、10PPM |
1/0.1PPm |
≤15s |
hydrogen chloride |
0-20PPm |
0-20/50PPm/100PPM |
0.01/0.1PPm |
≤15s |
Nitrogen-N2 |
0-30%VOL |
0-30%VOL、100%VOL |
0.1%LEL/1PPM |
≤10s |
hydrogen |
0-100%LEL |
0-1000PPm |
1%LEL/0.1PPm |
≤15s |
chlorine |
0-20PPm |
0-10、100PPm |
0.1PPm |
≤15s |
ammonia gas |
0-100PPm |
0-50、500、1000PPm |
1/0.1PPm |
≤15s |
oxynitride |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
≤15s |
methanal |
0-20PPm |
0-50、100PPm |
1/0.1PPm |
≤15s |
sulfur dioxide |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
≤15s |
nitric oxide |
0-250PPm |
0-500、1000PPm |
1PPm |
≤15s |
nitrogen dioxide |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
≤15s |
phosphine |
0-20PPm |
0-20、100PPm |
0.1PPm |
≤15s |
acrylonitrile |
0-100PPM |
0-100PPm |
0.1/1PPm |
≤15s |
carbon dioxide |
0-5000PPm |
0-1%/5%/10%VOL
(Infrared ) |
1PPM/0.01%VOL |
≤15s |
hydrogen fluoride |
0-10PPm |
0-1、10、50、100PPM |
0.01/0.1PPm |
≤15s |
Xylene/methylbenzene |
0-20PPm |
0-5、10、50、100PPm |
0.01/0.1PPm |
≤15s |
oxirane |
0-100PPm |
0-100PPm |
1/0.1PPm |
≤15s |
For other gases and measuring ranges, please contact us directly! |
Technical parameter
Keynote description
