Detection range | (0-100ppm), (0-10000ppm) |
Resolution | 1PPM |
Response time | T90 <10s |
Indication mode | LCD display real-time concentration |
Alarm | light-emitting diode, sound, vibration |
Mobile/whatsapp: +86-13333857585
Email: [email protected]

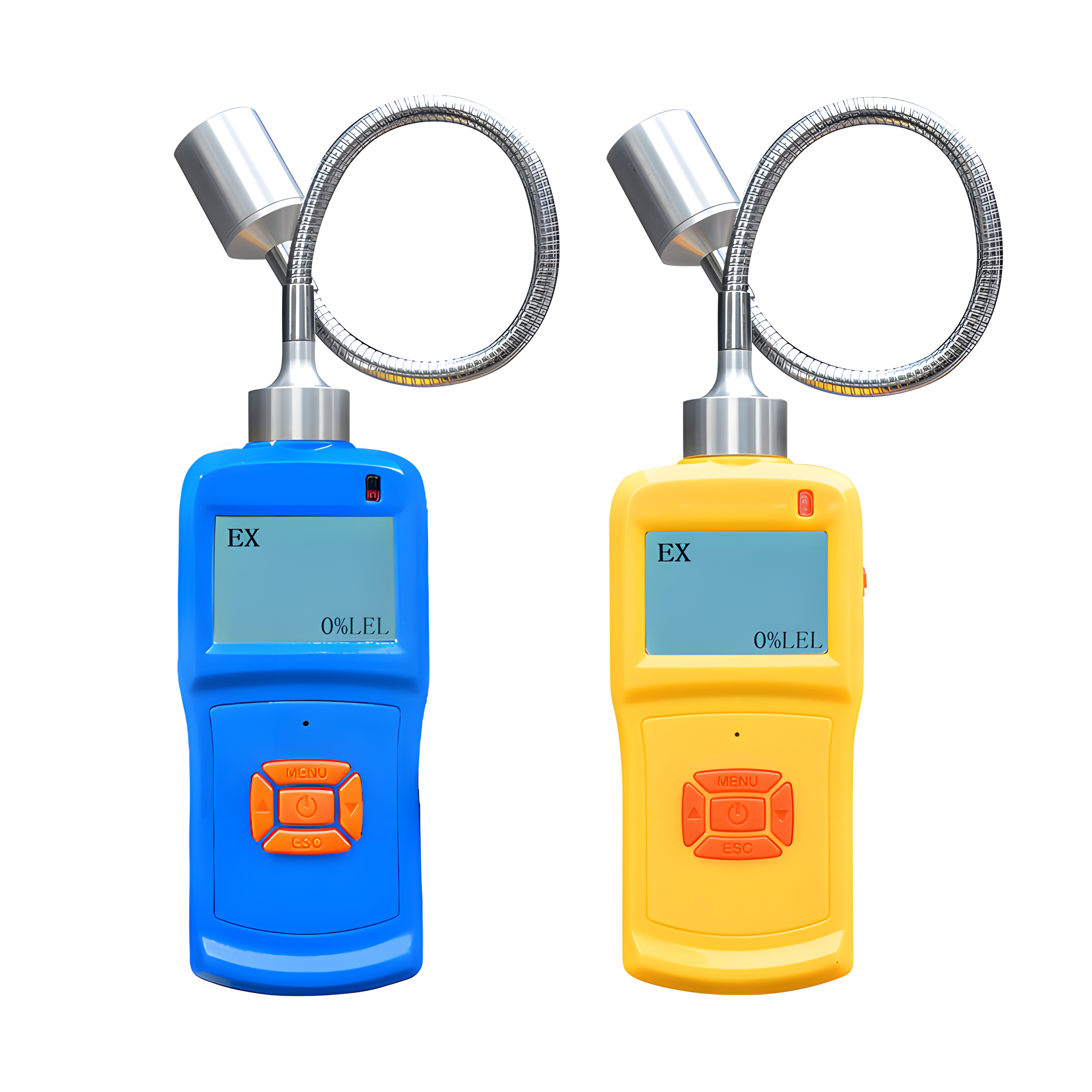

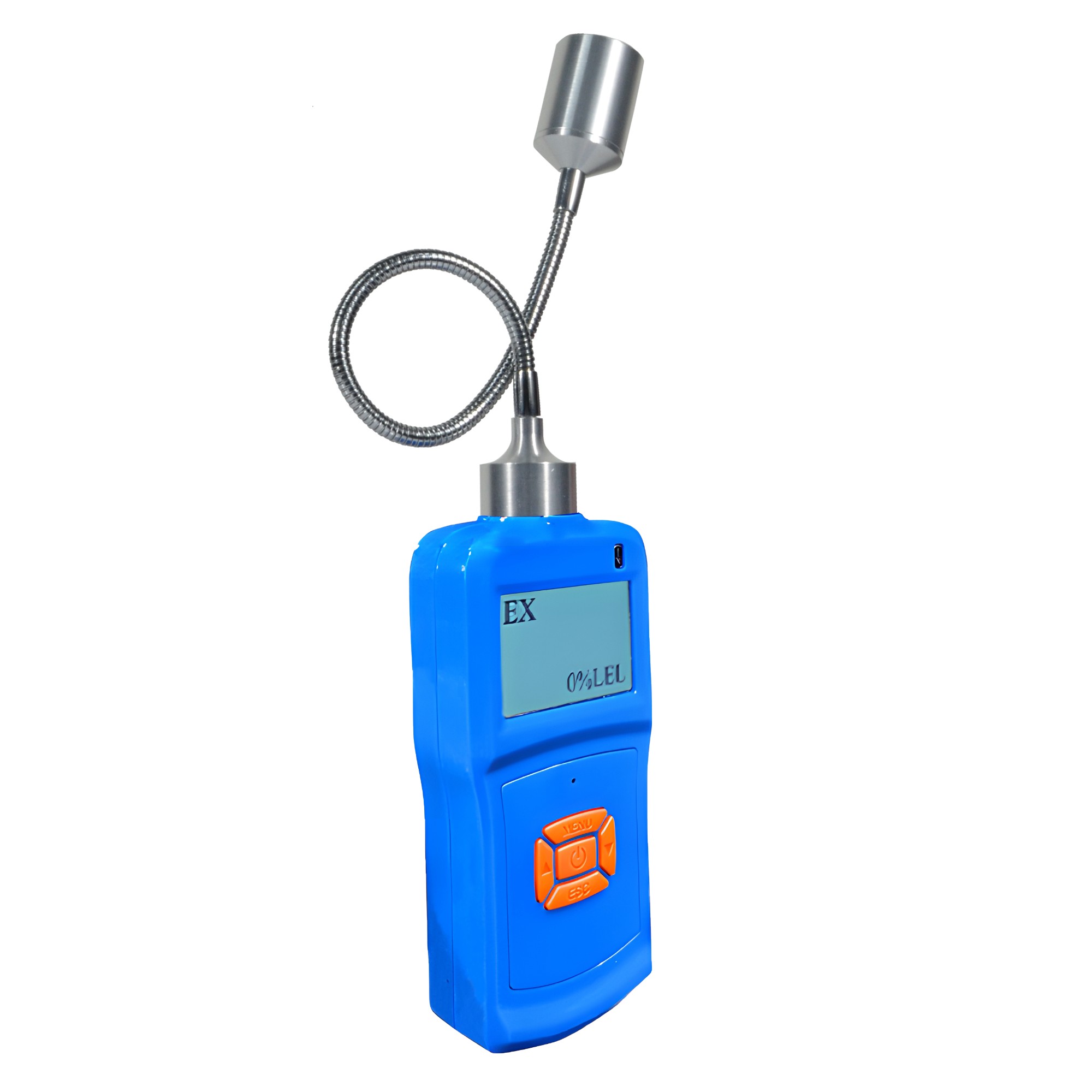

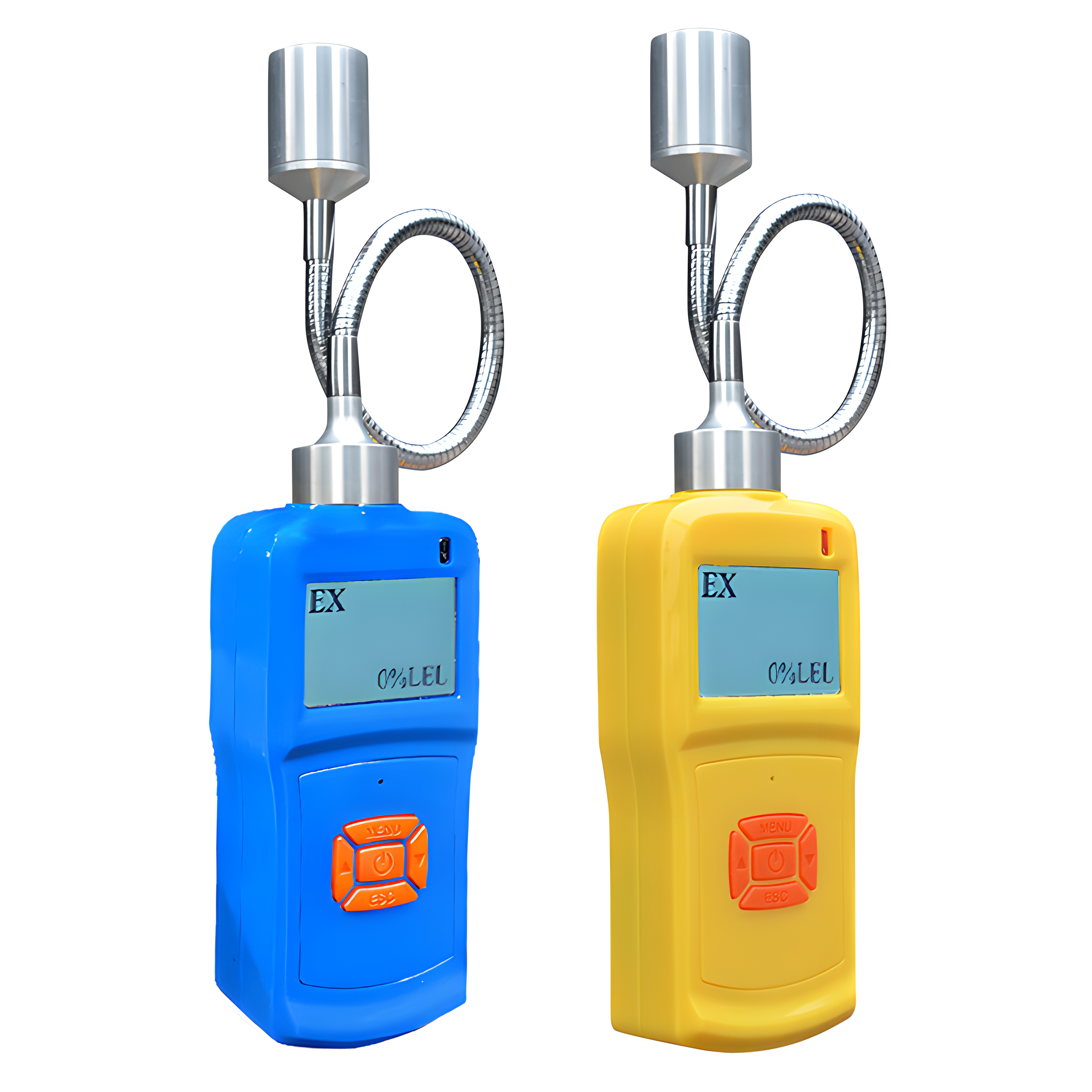

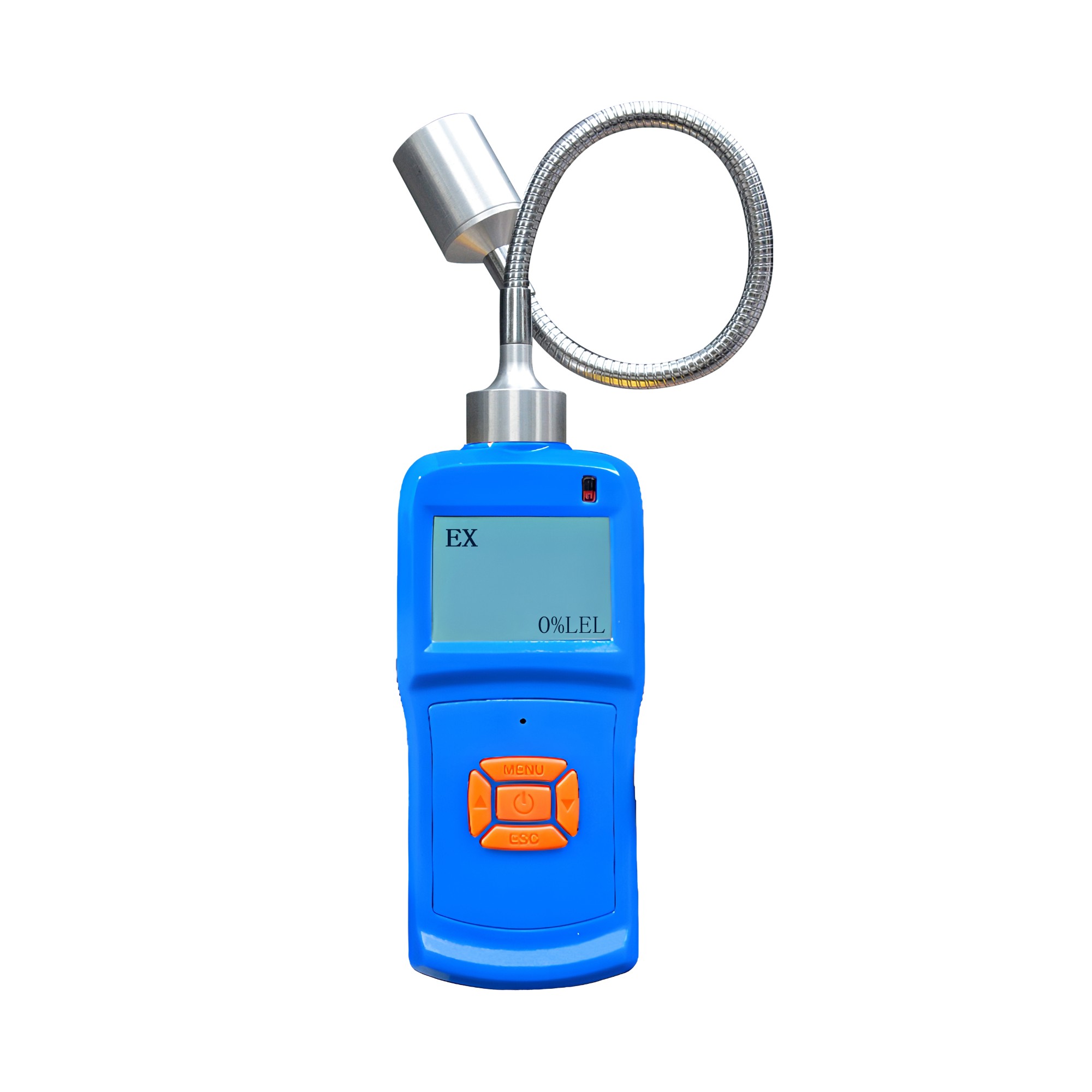

Portable Intelligent Gas Detector KP830J, designed by our company is a smart single gas detector is configured with import sensor and comfortable flexible probe. It has features of high sensitivity, excellent stability and reliability,
KP830J portable can detect gases; benzene, alcohols, lipids, alkynes, alkanes, ethers, ketones, triethylamine, gasoline kerosene diesel, solvent oil, ink cleaning agent, banana water, Vinyl chloride, acetic acid, liquid steam and so on.
The below gases are available
Gas detected |
Measuring Range |
Optional Range |
Resolution Ratio |
Response Time |
LEL -combustible gas |
0-100%LEL |
0-100%VOL(Infrared or catalytic ) |
1%LEL/1%vol |
≤10s |
carbon monoxide |
0-1000PPm |
0-500/2000/5000PPm |
0.1/1PPm |
≤10s |
TVOC |
0-100PPM |
0-100PPM |
0.1PPm/1PPM |
≤15s |
hydrogen |
0-100%LEL |
0-1000PPM |
1%LEL/1PPM |
≤15s |
natural gas |
0-100%LEL |
0-100%LEL |
1%LEL |
≤10s |
Oxygen-O2 |
0-30%VOL |
0-30%、0-100%VOL |
0.1%vol |
≤10s |
ozone |
0-10PPm |
0-20、100PPm |
0.01PPm/0.1PPM |
≤15s |
hydrogen sulfide-H2S |
0-100PPm |
0-50、200、1000PPm |
1/0.1PPm |
≤10s |
Methane-CH4 |
0-100%LEL |
0-100%VOL |
1%LEL/1%vol |
≤10s |
fluorine |
0-10PM |
0-1、10PPM |
1/0.1PPm |
≤15s |
hydrogen chloride |
0-20PPm |
0-20/50PPm/100PPM |
0.01/0.1PPm |
≤15s |
Nitrogen-N2 |
0-30%VOL |
0-30%VOL、100%VOL |
0.1%LEL/1PPM |
≤10s |
hydrogen |
0-100%LEL |
0-1000PPm |
1%LEL/0.1PPm |
≤15s |
chlorine |
0-20PPm |
0-10、100PPm |
0.1PPm |
≤15s |
ammonia gas |
0-100PPm |
0-50、500、1000PPm |
1/0.1PPm |
≤15s |
oxynitride |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
&nbs |
Detection gas | Flammable/toxic gas |
Detection range |
See Schedule |
Detection mode | Natural diffusion |
Detection principle | Semiconductor/catalysis/electrochemistry |
Response time |
T90 <10s |
Indication mode |
LCD display real-time concentration |
Alarm: |
light-emitting diode, sound, vibration |
Working environment |
- 20 ℃ ~ 60 ℃(Combustible); - 20 ℃ ~ 40 ℃(poison gas); |
Power |
3.7v 2000mA rechargeable lithium battery |
Standby time |
About 13 hours |
Degree of protection: |
IP65 |
Explosion-proof mark |
Ex ib IIB T3 Gb |
