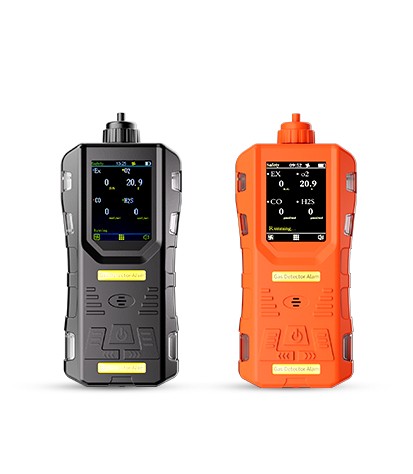

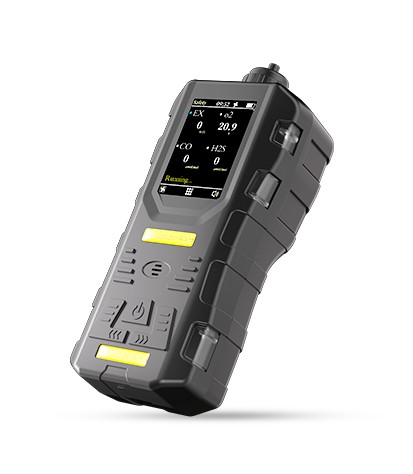

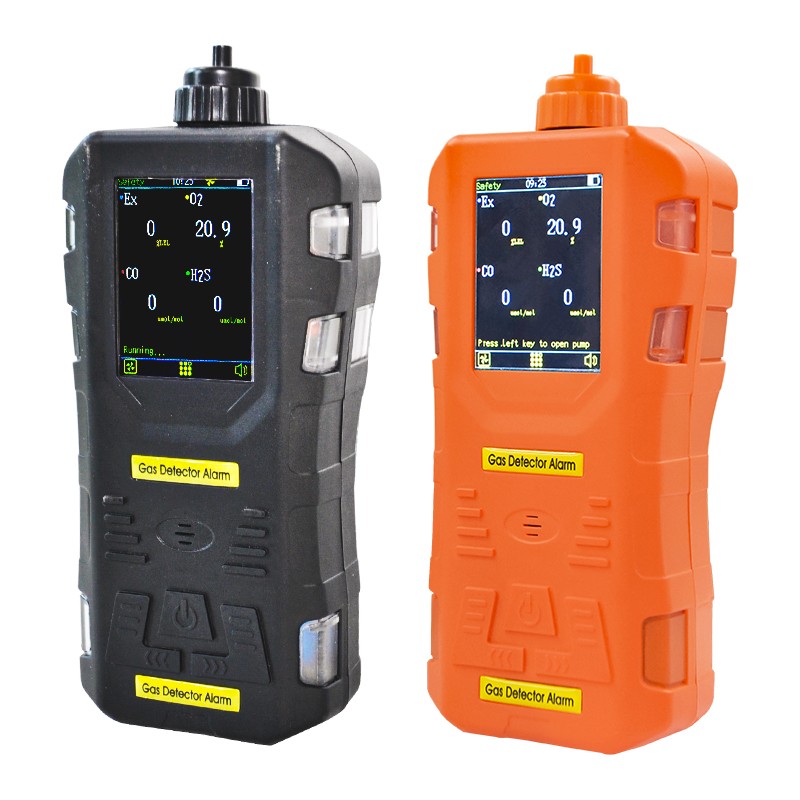

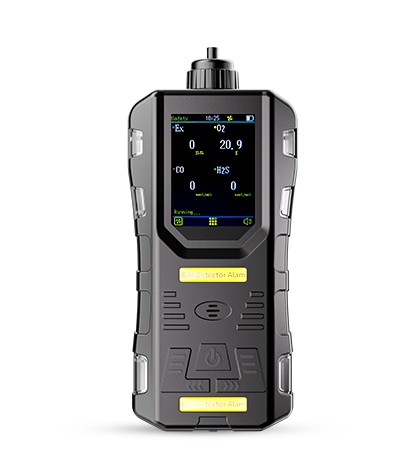

S316 Pump suction type gas detection alarm
| Detect gas |
Combustible gas, toxic gas |
| Detect principle | Pump suction |
| Explosion-proof mark | Ex ia IIC T4 Ga |
| Weight | IP65 |
Mobile/whatsapp: +86-13333857585
Email: [email protected]
TAG: portable multi gas detector LEL detector, LEL detector carbon monoxide (CO) detector hydrogen sulfide (H2S) detector
We're here to help:Easy ways to get the answers you need.
Description

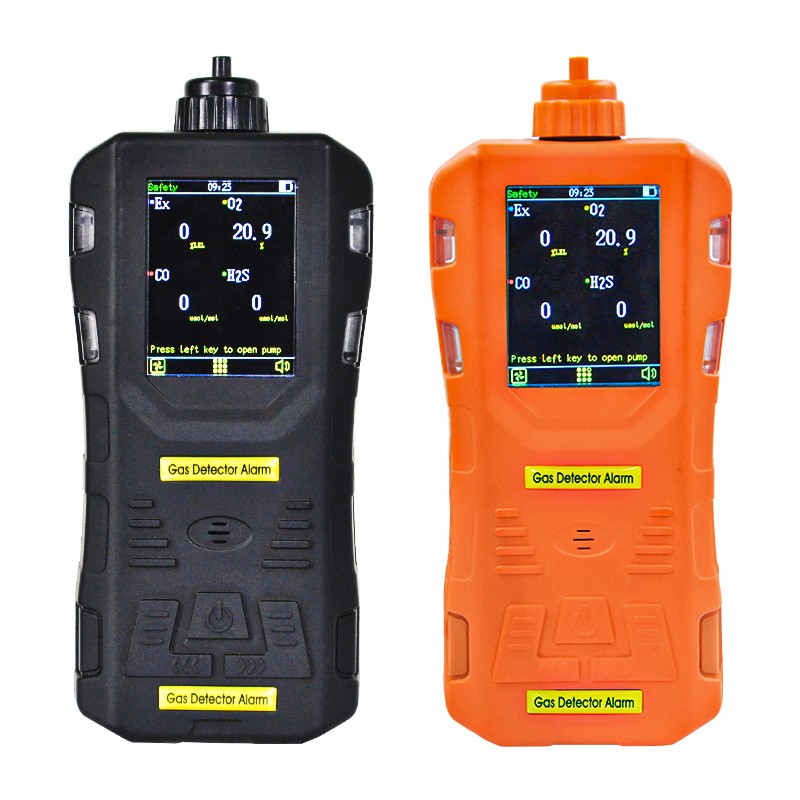

ZhongAn S316 pump suction gas detector is a multi-in-one gas detector. It can continuously detect combustible, oxygen, carbon monoxide, hydrogen sulfide and other toxic gases in ambient air, and detect up to 5 gases at the same time. This instrument is waterproof design and combine with rubber shell, to meet the harsh requirements of harsh environment.
ZhongAn S316 gas detector uses pump-suction mode for detecting, and high quality gas sensors are used for sensitive components, which has excellent sensitivity and repeatability. The instrument is controlled by embedded micro-computer. It has simple operation, complete functions, high reliability, multiple adaptive abilities, and is intuitive and clear with graphic and text liquid crystal display.
TAG: portable multi gas detector LEL detector, LEL detector carbon monoxide (CO) detector hydrogen sulfide (H2S) detector
Functions Features
The S316 is a portable multi-gas detection and alarm device designed for flexible gas monitoring applications. It supports freely configurable gas combinations and can simultaneously detect up to 5 gases, making it ideal for a wide range of industrial environments.
It is especially suitable for explosion-proof areas, emergency gas leak response, and confined spaces such as underground pipelines, ensuring the safety of both personnel and equipment.
Flexible Multi-Gas Detection
- Supports customizable gas combinations based on application needs
- Capable of detecting up to 5 gases simultaneously
- Suitable for toxic, combustible, and hazardous gas monitoring
Pump-Suction Sampling System

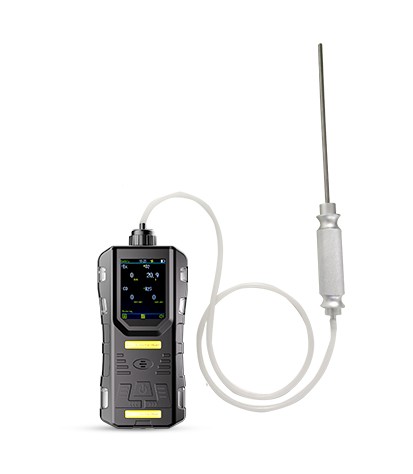

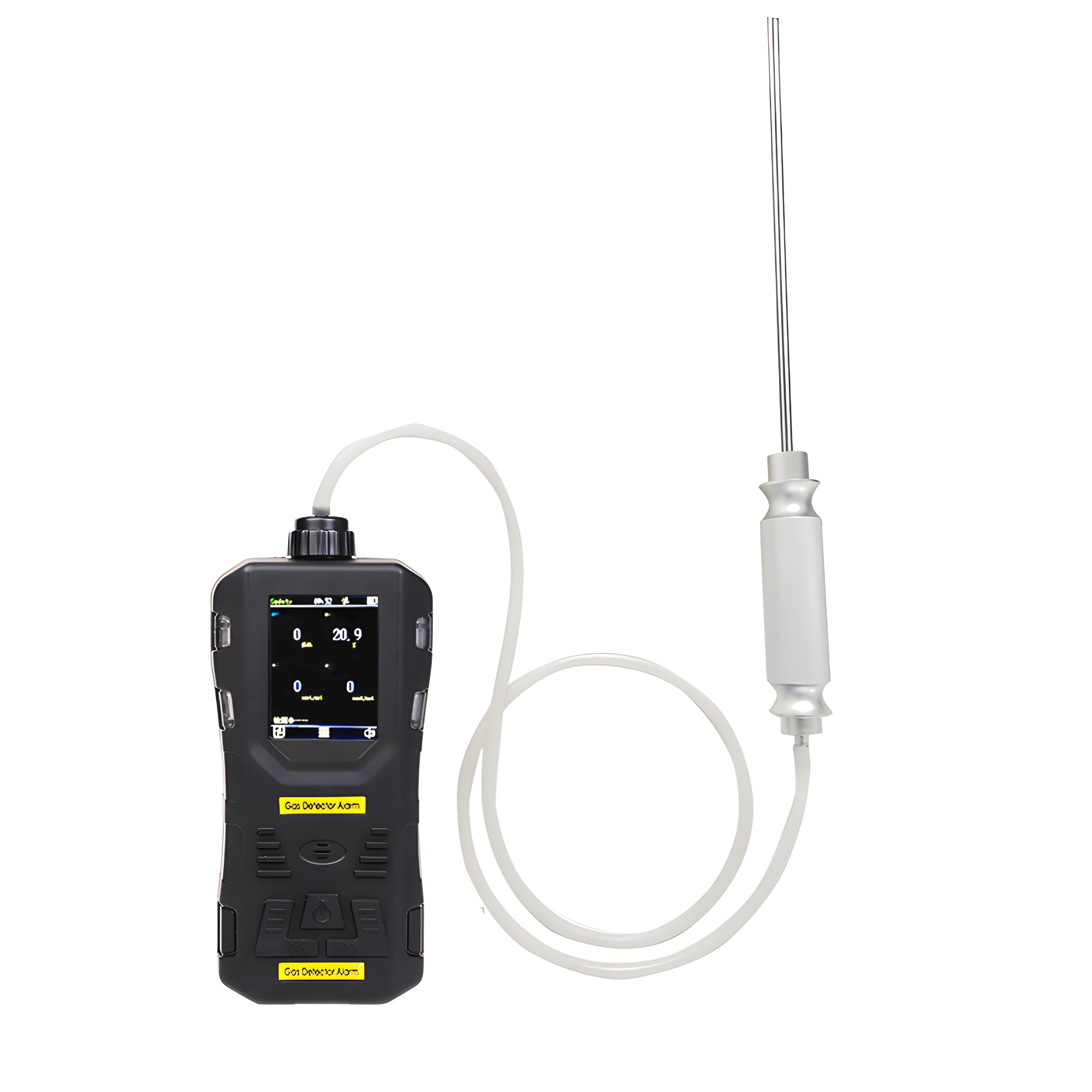

- Equipped with a built-in pump for active gas sampling
- Ensures faster and more accurate detection, even in hard-to-reach areas
High-Performance Sensors
- Integrated with imported high-quality sensors
- Offers high sensitivity, fast response, and excellent repeatability
- Reliable performance in demanding industrial conditions
Intelligent Control System
- Powered by an embedded microcontroller system
- Provides simple and user-friendly operation
- Stable performance with efficient data processing
Rugged & Protective Design
- Constructed with high-strength engineering plastics
- Covered with anti-slip rubber coating for a comfortable grip
- Designed for durability and long-term use in harsh environments
Full Protection Features
- Explosion-proof design for hazardous locations
- Waterproof and dustproof (industrial-grade protection)
- Suitable for extreme working conditions
Applications
- Oil & gas industry
- Chemical plants
- Underground pipeline inspection
- Confined space entry
- Emergency gas leak response
S316 delivers reliable, flexible, and high-performance gas detection—keeping your operations safe at all times.
TAG: portable multi gas detector LEL detector, LEL detector carbon monoxide (CO) detector hydrogen sulfide (H2S) detector
Technical Parameters
|
Detection mode |
Pump-suction type |
|
Sensor types |
catalysis, electrochemistry, PID, infrared |
|
Display error |
±3%FS |
|
Indicating mode |
LCD display real-time data and system status, light-emitting diode, sound and vibration indication alarm, fault and undervoltage |
|
Working environment |
temperature: - 20 ~55 ℃; humidity: < 93% RH without condensation |
|
Working voltage |
DC3.7V ; 3500mAh |
|
Charging time: |
<6h |
|
Working hours |
> 8 hours continuous (non-alarm standby state) |
|
Sensor life |
2 years (electrochemistry) |
| Explosion-proof mark |
Ex ia IIC T4 Ga |
| Explosion-proof certificate number | CLEx24.1020 |
|
Protection level |
IP65 |
|

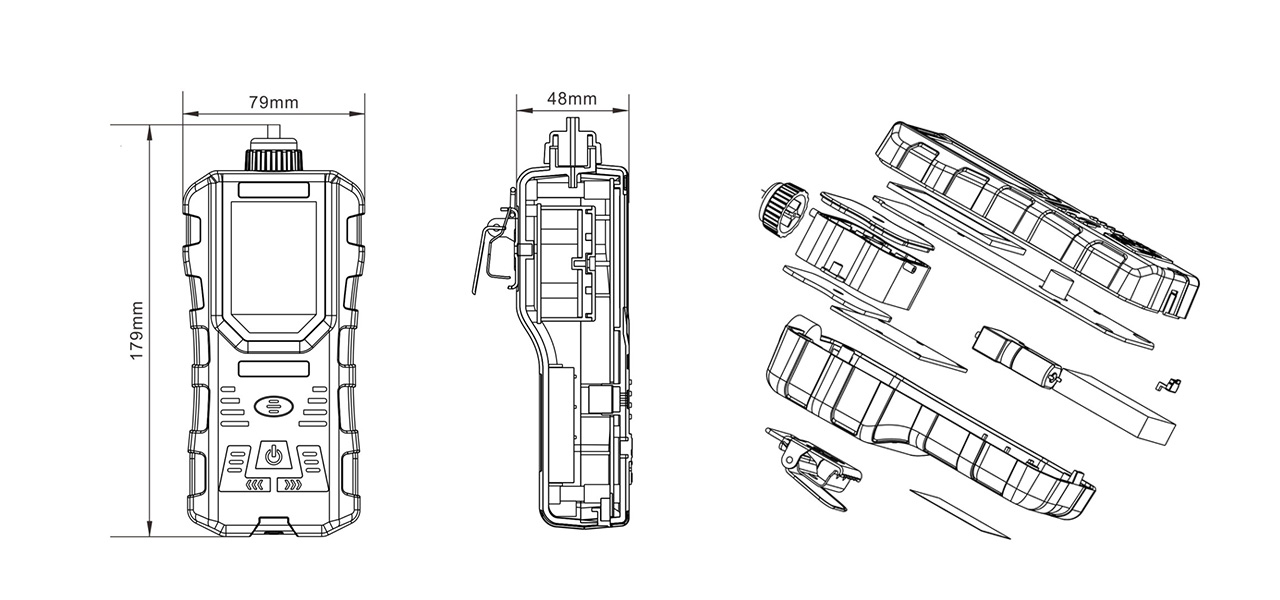

Shape size: |
179mm * 79 mm * 48 mm (length * width * height) |
|
Weight |
About 400g |
| Common Gas Parameter listing | ||||
| Gas detected | Measuring Range | Optional Range | Resolution Rat | Response Time |
| LEL -combustible gas | 0-100%LEL | 0-100%VOL（Infrared or catalytic ） | 1%LEL/1%vol | ≤10s |
| carbon monoxide | 0-1000PPm | 0-500/2000/5000PPm | 0.1/1PPm | ≤10s |
| TVOC | 0-100PPM | 0-100PPM | 0.1PPm/1PPM | ≤15s |
| hydrogen | 0-100%LEL | 0-1000PPM | 1%LEL/1PPM | ≤15s |
| natural gas | 0-100%LEL | 0-100%LEL | 1%LEL | ≤10s |
| Oxygen-O2 | 0-30%VOL | 0-30%、0-100%VOL | 0.1%vol | ≤10s |
| ozone | 0-10PPm | 0-20、100PPm | 0.01PPm/0.1PPM | ≤15s |
| hydrogen sulfide-H2S | 0-100PPm | 0-50、200、1000PPm | 1/0.1PPm | ≤10s |
| Methane-CH4 | 0-100%LEL | 0-100%VOL | 1%LEL/1%vol | ≤10s |
| fluorine | 0-10PM | 0-1、10PPM | 1/0.1PPm | ≤15s |
| hydrogen chloride | 0-20PPm | 0-20/50PPm/100PPM | 0.01/0.1PPm | ≤15s |
| Nitrogen-N2 | 0-30%VOL | 0-30%VOL、100%VOL | 0.1%LEL/1PPM | ≤10s |
| hydrogen | 0-100%LEL | 0-1000PPm | 1%LEL/0.1PPm | ≤15s |
| chlorine | 0-20PPm | 0-10、100PPm | 0.1PPm | ≤15s |
| ammonia gas | 0-100PPm | 0-50、500、1000PPm | 1/0.1PPm | ≤15s |
| oxynitride | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| methanal | 0-20PPm | 0-50、100PPm | 1/0.1PPm | ≤15s |
| sulfur dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| nitric oxide | 0-250PPm | 0-500、1000PPm | 1PPm | ≤15s |
| nitrogen dioxide | 0-20PPm | 0-50、1000PPm | 0.1/1PPm | ≤15s |
| phosphine | 0-20PPm | 0-20、100PPm | 0.1PPm | ≤15s |
| acrylonitrile | 0-100PPM | 0-100PPm | 0.1/1PPm | ≤15s |
| carbon dioxide | 0-5000PPm | 0-1%/5%/10%VOL(Infrared ) | 1PPM/0.01%VOL | ≤15s |
| hydrogen fluoride | 0-10PPm | 0-1、10、50、100PPM | 0.01/0.1PPm | ≤15s |
| Xylene/methylbenzene | 0-20PPm | 0-5、10、50、100PPm | 0.01/0.1PPm | ≤15s |
| oxirane | 0-100PPm | 0-100PPm | 1/0.1PPm | ≤15s |
| For other gases and measuring ranges, please contact us directly! | ||||
