Zhongan S105 gas detector adopts the mixed technology of two-wire signal and power supply, wiring only needs 2 wires, no positive and negative wiring is convenient, the detector integrates sound and l
|
Detection gas |
combustible/toxic and harmful gas (see attached table) |
|
Detection method |
natural diffusion |
|
Detection principle |
catalysis; electrochemistry; semiconductor; infrared |
|
Detection range |
(0~100%) LEL; 0-****PPM |
We're here to help:Easy ways to get the answers you need.
Description

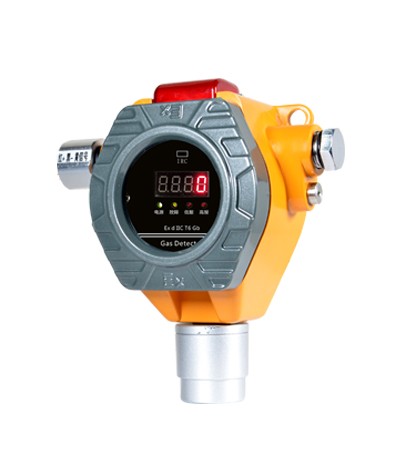

Zhongan S105 gas detector adopts the mixed technology of two-wire signal and power supply, wiring only needs 2 wires, no positive and negative wiring is convenient, the detector integrates sound and light display in one, wireless remote control debugging parameters, and real-time display monitoring On-site gas concentration, safe and simple without opening the cover.
Zhongan S105 point-type gas detector can convert the signal of gas concentration in the air into electric signal for remote transmission. The instrument has the advantages of long transmission distance, anti-interference, high sensitivity and fast response time.
Functions Features
-
Non-polar wiring is simple, no short circuit design
-
Two bus structure wiring saves time and worry
-
Sound and light alarm
-
High measurement accuracy and low zero drift
-
Explosion-proof design can be used in hazardous conditions in factory conditions 1 and 2
-
Wireless remote control technology
-
Intuitive digital display
-
Two sets of switch signals
Technical Parameters
|
Detection gas |
combustible/toxic and harmful gas (see attached table) |
|
Detection method |
natural diffusion |
|
Detection principle |
catalysis; electrochemistry; semiconductor; infrared |
|
Detection range |
(0~100%) LEL; 0-****PPM |
|
Resolution |
1% LEL; 1PPM/0.1PPM |
|
Display |
LCD display, LED display |
|
Battery |
DC24V |
|
Response time |
flammable: <15s; toxicity: <60s |
|
Working environment |
temperature: -20℃-60℃;
Humidity: <95%RH |
|
Alarm |
sound and light alarm |
|
Response time |
flammable: <15s; toxicity: <60s |
|
Working environment |
temperature: -20℃-60℃; humidity: <95%RH |
|
Resolution |
1% LEL; 1PPM/0.1PPM |
|
Debugging method |
manipulator |
|
Output signal |
two-wire system |
|
Power consumption |
≤3W |
|
Explosion-proof grade |
Exd IIC T6 Gb |
|
Protection level |
IP66 |
|
size |
(182×175×73)mm instrument |
|
Instrument weight |
1500g |
|
Maximum distance between detector and host |
≤1000m
|
