Detection gas |
Dust |
Detection method |
pump suction |
Detection principle |
laser |
Range |
0~1000ug/m 3;0~1000mg/m3(option) |
Resolution |
1ug/ m3 or 1mg/m3 (option) |

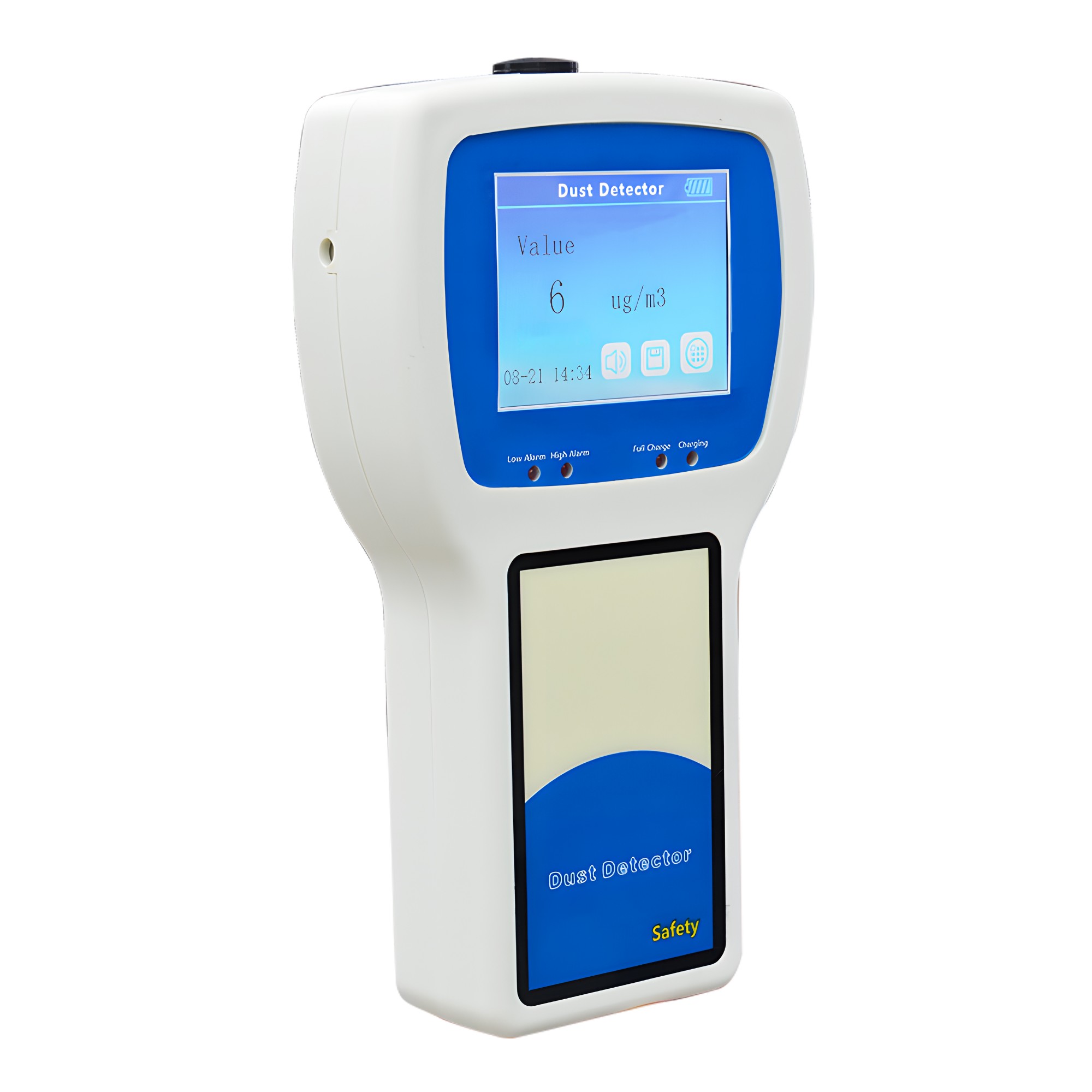

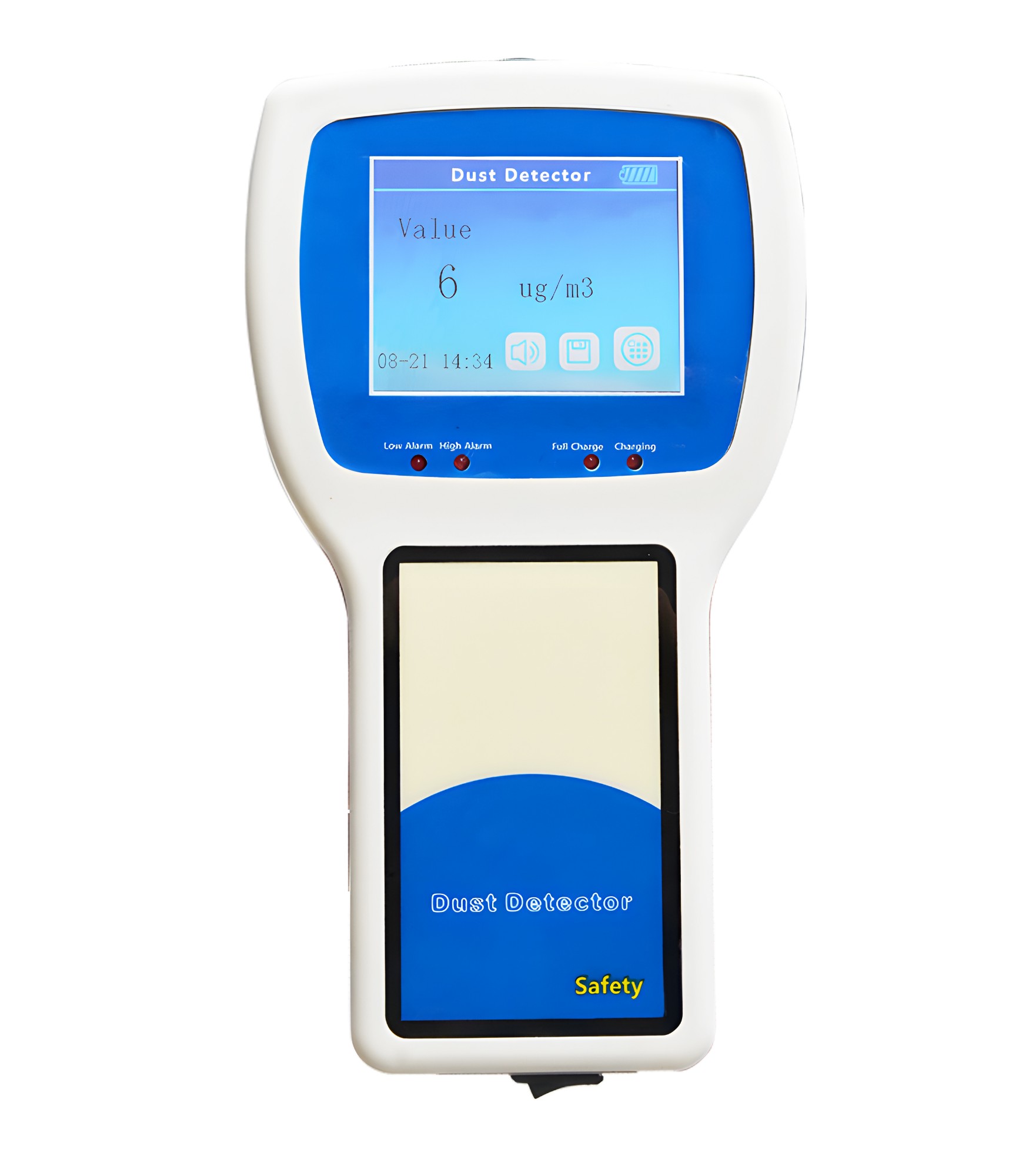

ZH01-B dust concentration measuring instrument is a dust measuring instrument manufactured by pumping sampling based on laser scattering principle.It mainly detects suspended particles or large particles of dust, coal dust, dust, cement dust, etc., and the data output is concentration weight model.
The instrument adopts advanced embedded technology and the central processor processes the collected information. It has the advantages of fast processing speed, strong anti-interference ability and high measurement accuracy. This detector USES Chinese touch screen, high precision laser dust concentration detection sensor, high precision data processor, high power safe power supply. Compared with traditional detector, this instrument USES color Chinese interface and touch screen control, which simplifies the operation steps and enables users to operate this instrument more conveniently, quickly and intuitively.
The below gases are available
Gas detected |
Measuring Range |
Optional Range |
Resolution Ratio |
Response Time |
LEL -combustible gas |
0-100%LEL |
0-100%VOL(Infrared or catalytic ) |
1%LEL/1%vol |
≤10s |
carbon monoxide |
0-1000PPm |
0-500/2000/5000PPm |
0.1/1PPm |
≤10s |
TVOC |
0-100PPM |
0-100PPM |
0.1PPm/1PPM |
≤15s |
hydrogen |
0-100%LEL |
0-1000PPM |
1%LEL/1PPM |
≤15s |
natural gas |
0-100%LEL |
0-100%LEL |
1%LEL |
≤10s |
Oxygen-O2 |
0-30%VOL |
0-30%、0-100%VOL |
0.1%vol |
≤10s |
ozone |
0-10PPm |
0-20、100PPm |
0.01PPm/0.1PPM |
≤15s |
hydrogen sulfide-H2S |
0-100PPm |
0-50、200、1000PPm |
1/0.1PPm |
≤10s |
Methane-CH4 |
0-100%LEL |
0-100%VOL |
1%LEL/1%vol |
≤10s |
fluorine |
0-10PM |
0-1、10PPM |
1/0.1PPm |
≤15s |
hydrogen chloride |
0-20PPm |
0-20/50PPm/100PPM |
0.01/0.1PPm |
≤15s |
Nitrogen-N2 |
0-30%VOL |
0-30%VOL、100%VOL |
0.1%LEL/1PPM |
≤10s |
hydrogen |
0-100%LEL |
0-1000PPm |
1%LEL/0.1PPm |
≤15s |
chlorine |
0-20PPm |
0-10、100PPm |
0.1PPm |
≤15s |
ammonia gas |
0-100PPm |
0-50、500、1000PPm |
1/0.1PPm |
≤15s |
oxynitride |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
≤15s |
methanal |
0-20PPm |
0-50、100PPm |
1/0.1PPm |
≤15s |
sulfur dioxide |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
≤15s |
nitric oxide |
0-250PPm |
0-500、1000PPm |
1PPm |
≤15s |
nitrogen dioxide |
0-20PPm |
0-50、1000PPm |
0.1/1PPm |
≤15s |
phosphine |
0-20PPm |
0-20、100PPm |
0.1PPm |
≤15s |
acrylonitrile |
0-100PPM |
0-100PPm |
0.1/1PPm |
≤15s |
carbon dioxide |
0-5000PPm |
0-1%/5%/10%VOL
(Infrared ) |
1PPM/0.01%VOL |
≤15s |
hydrogen fluoride |
0-10PPm |
0-1、10、50、100PPM |
0.01/0.1PPm |
≤15s |
Xylene/methylbenzene |
0-20PPm |
0-5、10、50、100PPm |
0.01/0.1PPm |
≤15s |
oxirane |
0-100PPm |
0-100PPm |
1/0.1PPm |
≤15s |
For other gases and measuring ranges, please contact us directly! |
Detection gas |
Dust |
Detection method |
pump suction |
Detection principle |
laser |
Range |
0~1000ug/m 3;0~1000mg/m3(option) |
Resolution |
1ug/ m3 or 1mg/m3 (option) |
Display mode |
LCD display, touch screen operation |
Battery |
3.7V 4000mA |
Power supply |
Lithium-ion rechargeable battery |
Alarm: |
Sound and lingt alarm |
Response time |
<20s |
Measure error |
≤±20% |
Sampling method |
Real-time sampling |
Update frequency |
≥2 s |
Date storage |
1000 (can clear) |
Working temperature |
–10~60℃; humidity:0~90%RH |
Life |
5 years (theoretical value) |
Size |
(230*130*43)cm |
Weight |
400g |
