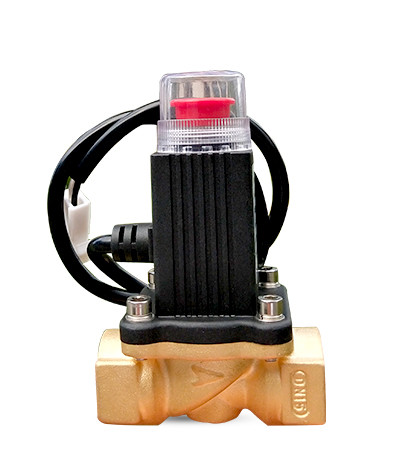

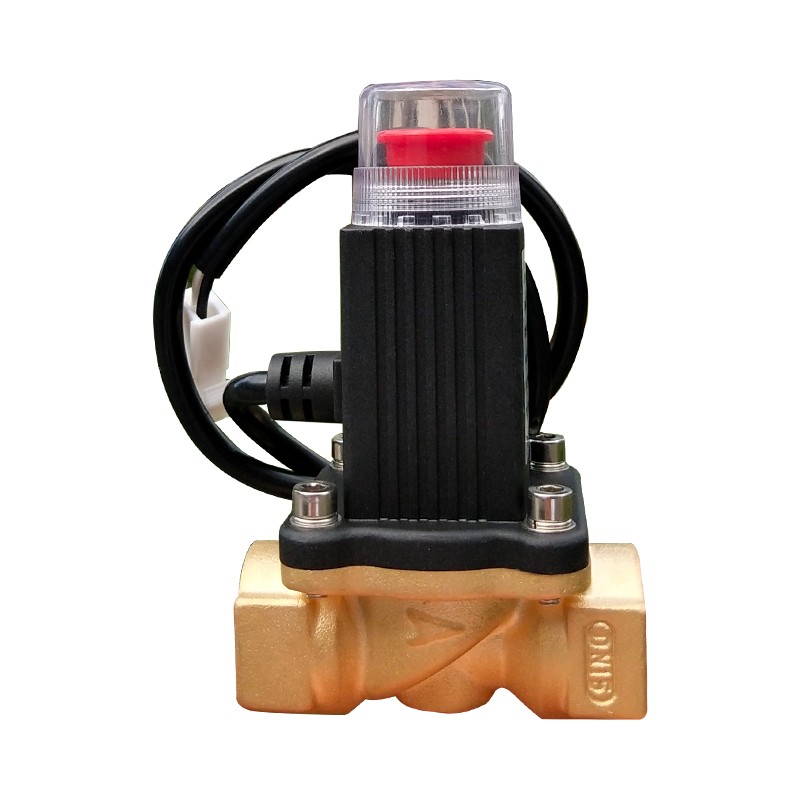

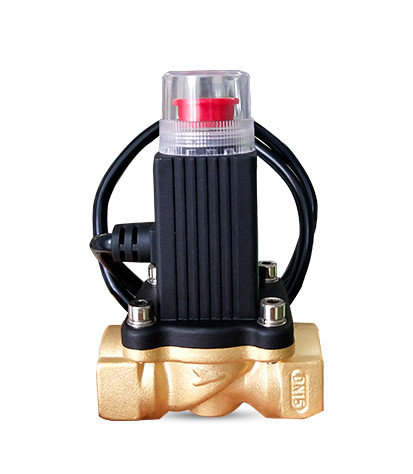

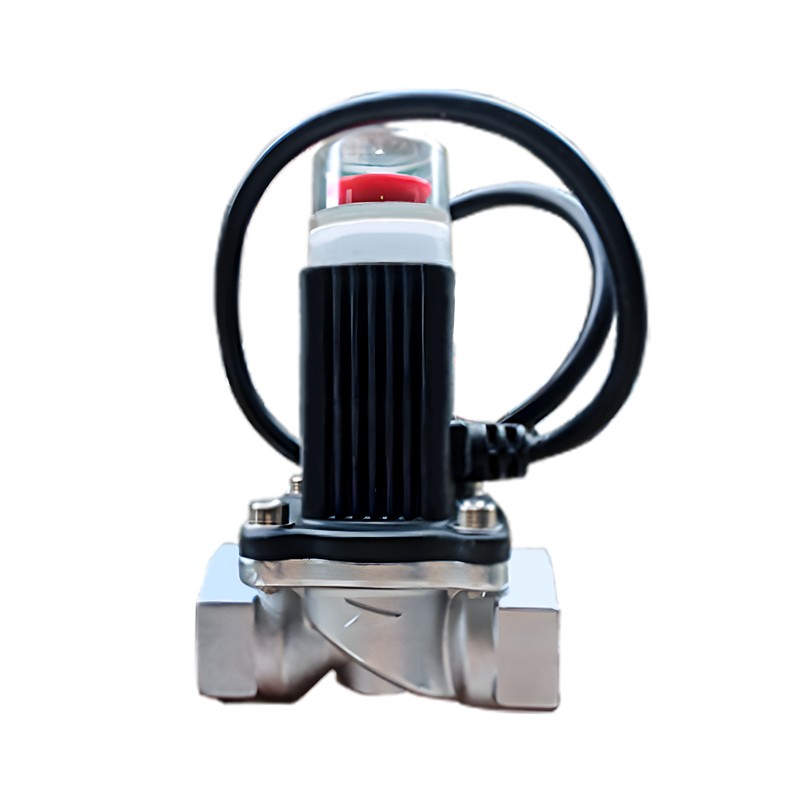

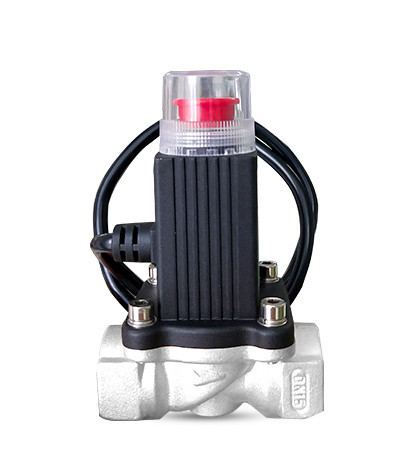

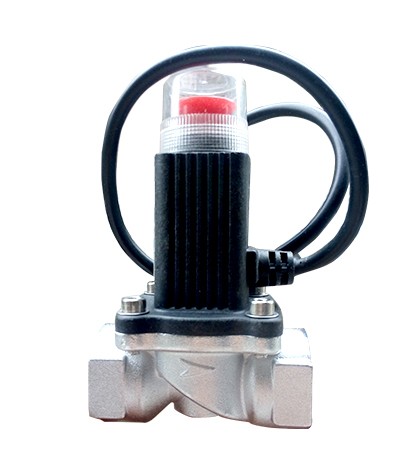

Household safety products: dn-15 series gas emergency cut-off solenoid valve is the safety emergency cut-off device of gas pipeline. It can be connected with the gas leakage alarm system or with the fire control and other intelligent alarm control terminal modules, so as to realize the on-site or remote automatic / manual emergency cut-off of gas source and ensure the safety of gas use. When harmful strong vibration occurs, the valve will close automatically. The valve shall be opened manually after manual intervention to meet the safety management specifications and the characteristics of accident handling.
◆ applicable gas: natural gas, liquefied petroleum gas, artificial gas and other non corrosive gas
◆ driving voltage: DC9V~DC12V.(pulse)
◆ Body material: brass alloy
◆ Driving current: <2A(pulse)
◆ Sealing material:NBR rubber
◆ Valve closing time: less than 1s
◆ Working environment temperature:-10℃~+50℃
◆ Explosion proof type: cast in type
◆ Maximum working pressure:50kPa
◆ Outlet length: 0.4米
◆ Connection mode:G1/2”(DN15A)/G3/4”(DN20A)
◆ Valve closing mode: DC pulse drive / manual
◆ Valve opening mode: manual reset
