Description

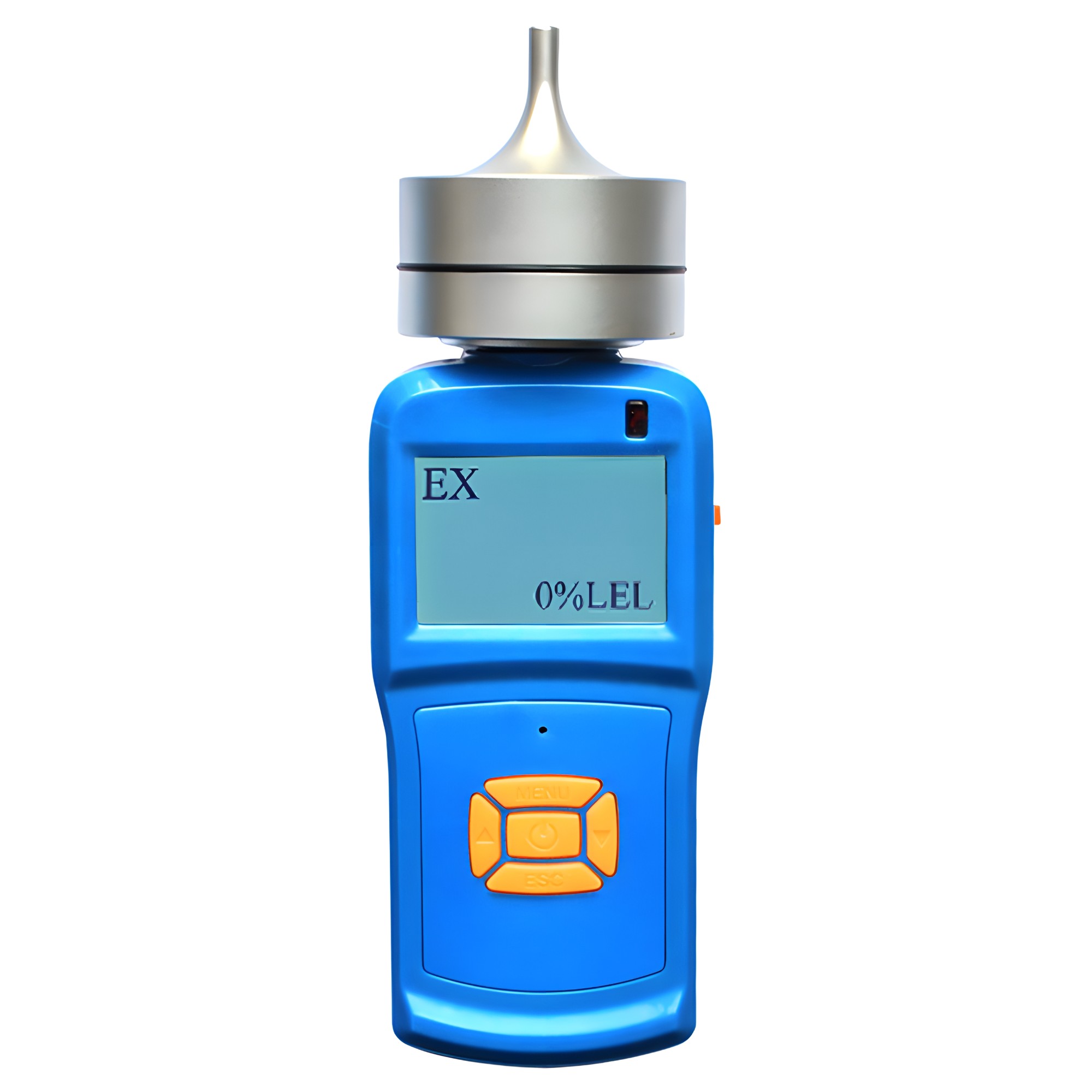

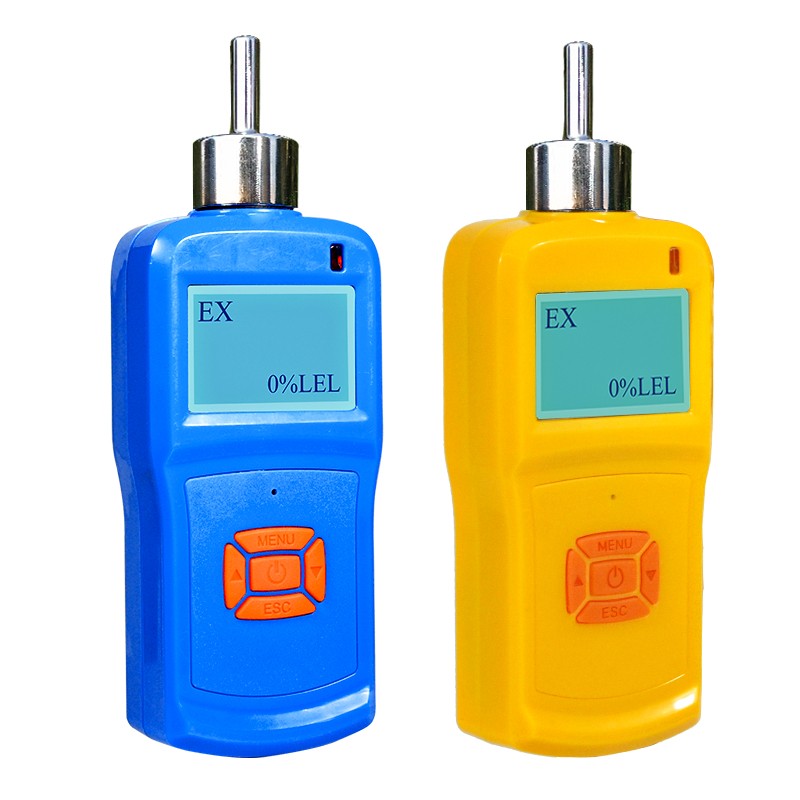

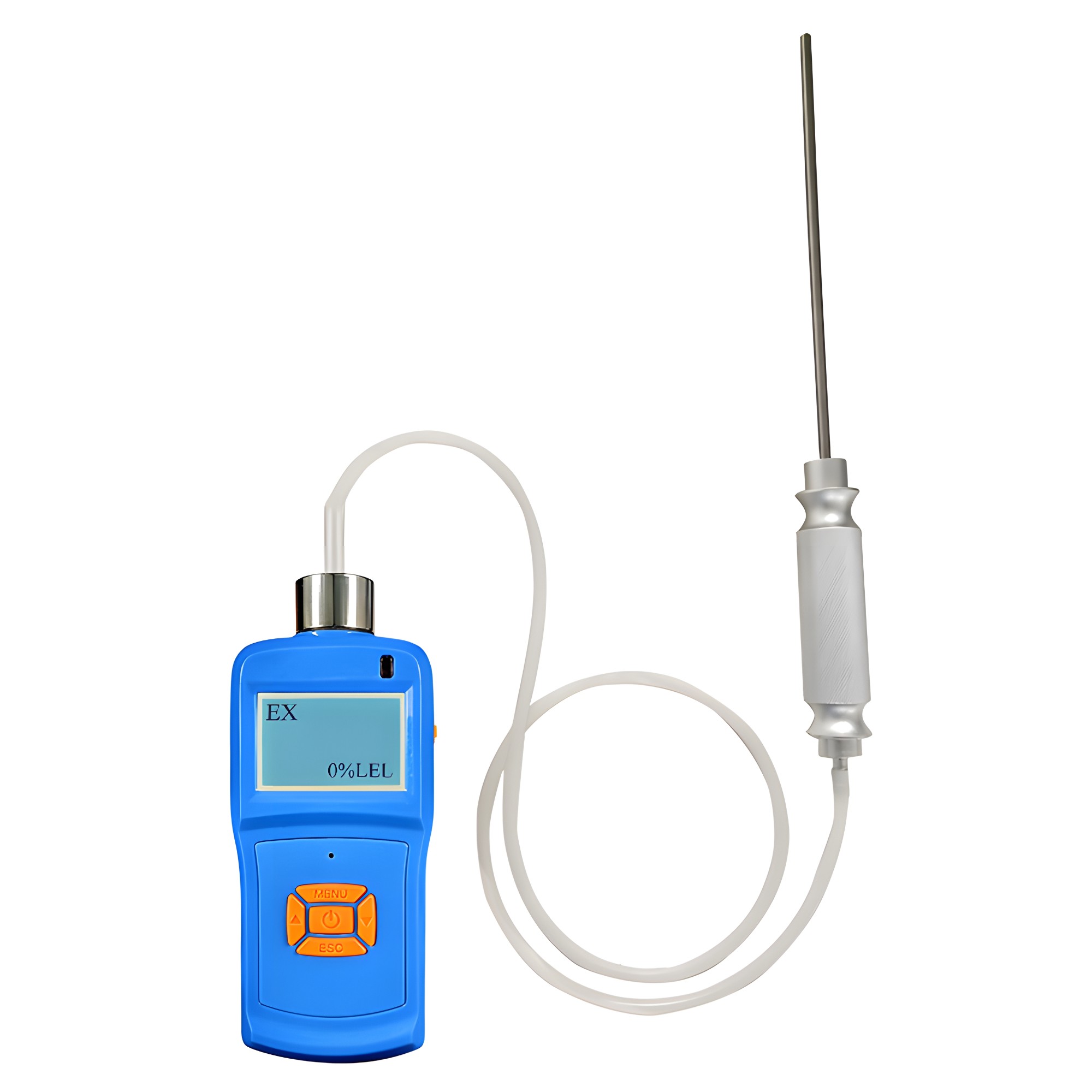

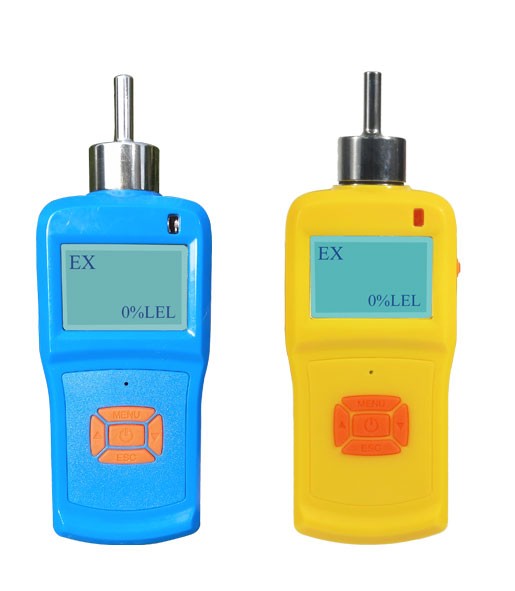

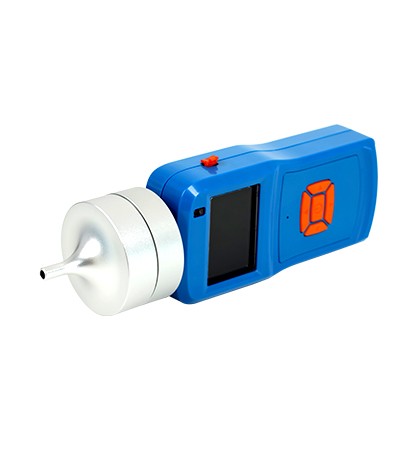

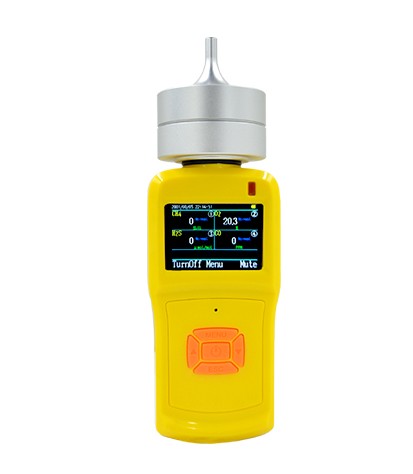

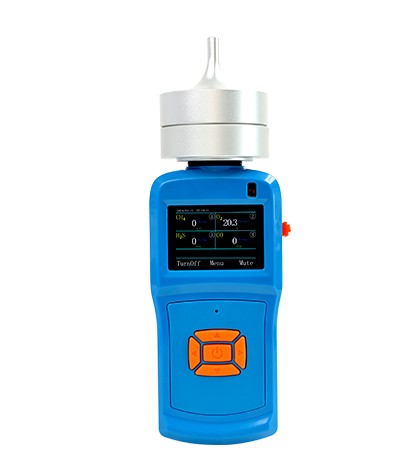

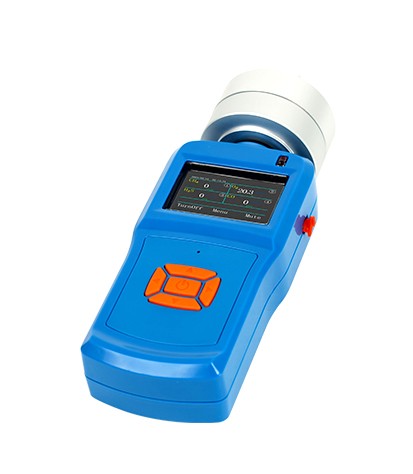

KP830 is one portable gas detector with built-in miniature sampling pump. It can be connected with computer through USB data interface for copy & print detecting data. This device is configured with large-screen liquid crystal lattice display technology for direct reading function. It adopts comfortable ABS flame retardant plastic shell, imported detection sensor to ensure device’s stability and reliability. This instrument has been widely used in various places for detecting flammable & explosive gas, toxic gases, or other kind of gases that may cause asphyxia. You can choose the gas that you need to detect from the below gas list;
The below gases are available
Gas detected
|
Measuring Range
|
Optional Range
|
Resolution Ratio
|
Response Time
|
LEL -combustible gas
|
0-100%LEL
|
0-100%VOL(Infrared or catalytic )
|
1%LEL/1%vol
|
≤10s
|
carbon monoxide
|
0-1000PPm
|
0-500/2000/5000PPm
|
0.1/1PPm
|
≤10s
|
TVOC
|
0-100PPM
|
0-100PPM
|
0.1PPm/1PPM
|
≤15s
|
hydrogen
|
0-100%LEL
|
0-1000PPM
|
1%LEL/1PPM
|
≤15s
|
natural gas
|
0-100%LEL
|
0-100%LEL
|
1%LEL
|
≤10s
|
Oxygen-O2
|
0-30%VOL
|
0-30%、0-100%VOL
|
0.1%vol
|
≤10s
|
ozone
|
0-10PPm
|
0-20、100PPm
|
0.01PPm/0.1PPM
|
≤15s
|
hydrogen sulfide-H2S
|
0-100PPm
|
0-50、200、1000PPm
|
1/0.1PPm
|
≤10s
|
Methane-CH4
|
0-100%LEL
|
0-100%VOL
|
1%LEL/1%vol
|
≤10s
|
fluorine
|
0-10PM
|
0-1、10PPM
|
1/0.1PPm
|
≤15s
|
hydrogen chloride
|
0-20PPm
|
0-20/50PPm/100PPM
|
0.01/0.1PPm
|
≤15s
|
Nitrogen-N2
|
0-30%VOL
|
0-30%VOL、100%VOL
|
0.1%LEL/1PPM
|
≤10s
|
hydrogen
|
0-100%LEL
|
0-1000PPm
|
1%LEL/0.1PPm
|
≤15s
|
chlorine
|
0-20PPm
|
0-10、100PPm
|
0.1PPm
|
≤15s
|
ammonia gas
|
0-100PPm
|
0-50、500、1000PPm
|
1/0.1PPm
|
≤15s
|
oxynitride
|
0-20PPm
|
0-50、1000PPm
|
0.1/1PPm
|
|
