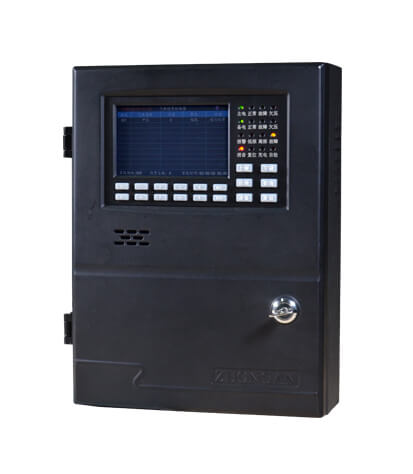

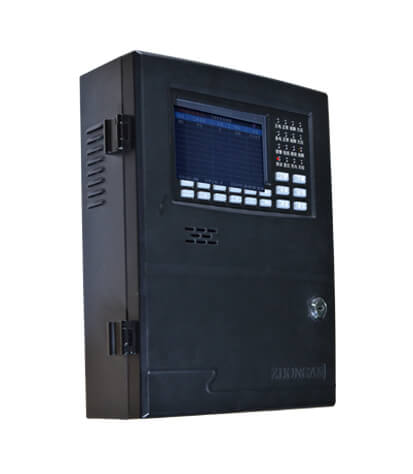

Zhongan S8200 gas alarm controller

Display mode	5 inch color LCD screen
Communication method	with one RS485 output, RS232 output (optional)
Installation method	fixed installation on site, wall-mounted
Network capacity	99-channel bus detector input or 16-channel 4-20mA

Mobile/whatsapp: +86-13333857585

Email: [email protected]

We're here to help:Easy ways to get the answers you need.

Description Functions Features Technical Parameters Get In Touch

Description

The S8200 gas alarm controller adopts a color liquid crystal indication method, which can be used to detect the concentration of the gas to be measured in the environment. When the concentration of the gas to be measured in the environment reaches or exceeds the preset alarm value, the controller immediately issues a voice alarm prompt and can Starting to drive exhaust or other external control equipment can effectively prevent poisoning accidents, explosions, and fires, thereby ensuring the safety of life and property.

The S8200 gas alarm controller adopts the latest two-wire digital technology or three-wire output method. It has large networking capacity, simple operation, programmable alarm setting, and uploadable system.

Functions Features

The host stores alarm records (SD card stores 10,000 alarm records)
Large-screen color LCD display
Single channel real-time concentration value curve display
Single channel history curve
System temperature and humidity display
6 relay outputs, reserved normally open and normally closed interface, programmable partition
Two 12V2.3A power supplies (non-standard)
Can bring multiple detectors to detect different gas composition,
And centralized control of multiple points at the same time
The system has large network capacity and convenient wiring
Standard installation of anchors is easy and convenient
Simple sliding into the wall
Analog voice alarm is clear and sweet
Humanized design alarm value and relay can be set
Intuitive alarm and fault indication functions

Technical Parameters

Display mode	5 inch color LCD screen
Communication method	with one RS485 output, RS232 output (optional)
Installation method	fixed installation on site, wall-mounted
Network capacity	99-channel bus detector input or 16-channel 4-20mA
Electric shock output	6 groups of passive relay outputs freely set
Alarm mode	voice horn alarm
Alarm point	two-level alarm, freely set by the user
Power supply voltage	AC220V±10% 50HZ
Electric board switch	1 group of main power and 1 group of back power (non-standard configuration)
Working temperature	-20℃- 55℃
Working humidity	<95%RH
Storage temperature	(-20-70)℃
:Pressure range	(86-106)KPa
Cable requirements	branch line: RVVP 3×1.5mm2; second bus: RVVP2×1.5mm2
Transmission distance:	≤1500m
Product size:	(32524595) mm
Product weight:	6.8kg
Other accessories	Standard installation hanging plate and Ф8 anchor expansion bolt
